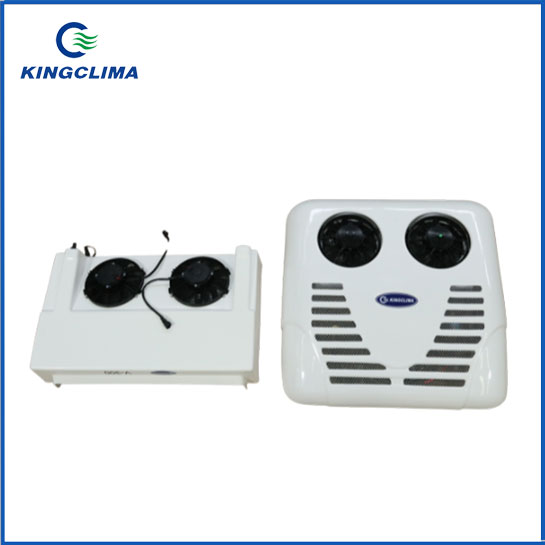

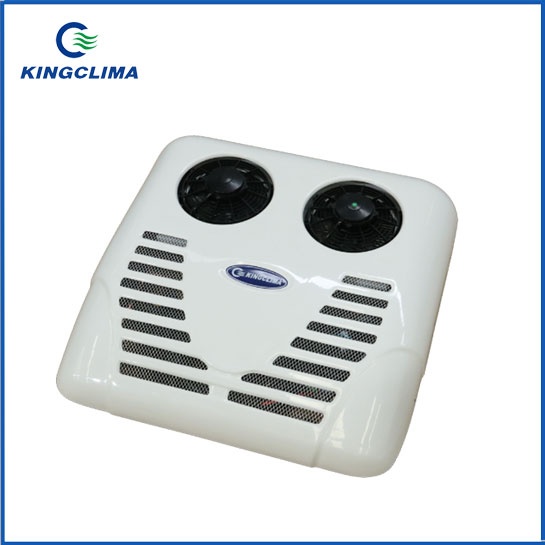

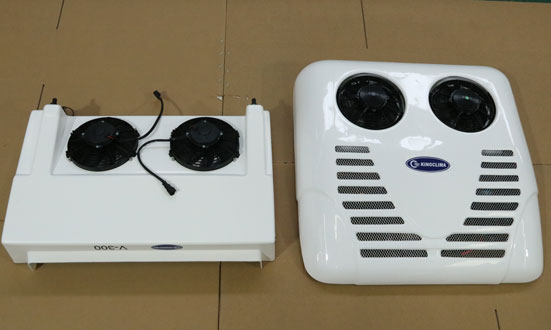

V-300C Van Refrigeration Unit

V-300C Van Refrigeration Units

KingClima V-300C Van Refrigeration Unit apply to small van or medium refrigerated cargo vans with 6-17m³ van body box.

Model : V-300C

Cooling Capacity : 3020W（0℃/32℉）

Application : 8 -16 m³

Compressor : SD5S14(138CC/r) /QP15

Introduction

Technical Data

Features

INQUIRY

Introduction

Brief Description of V-300C Van Refrigeration Unit :

KingClima V-300C fridge units for vans are rooftop mounting, driven by vehicle engine and apply for 8 -16 m³ van container box. V-300C reefer unit apply to small van and medium refrigerated cargo vans with 8-16m³ van body box.

V-300C Van Refrigeration Unit was designed for transporting fresh fruits, milk ,vegetables, meat, dairy products and so on.

Optional Functions of V-300C Van Refrigeration Unit :

AC220V/1Ph/50Hz or AC380V/3Ph/50Hz
Optional electric standby system AC 220V/380V

Technical Data

Model		V-300C
Temperature Range In Container		-5℃ ~ +15℃
Cooling Capacity		3020W/2580Kcal/10236BTU （0℃/32℉）
Driven Model		Direct Vehicle Engine Driven
Voltage DC (V)		12V/24V
Refrigerant		R404a
Refrigerant Charge		1.7Kg ~ 1.8Kg
Box Temperature Adjustment		Electronic digital display
Safety Protect		High and low pressure switch
Defrosting		Hot gas defrost (CPR)
Compressor	Model	SD5S14(138CC/r) /QP15
Condenser	Coil	Aluminum micro-channel parallel flow coils
	Fan	2 Axial Fan
	Dimensions&Weight	800×865×210 mm & 20kg
Evaporator	Coil	Aluminum foil with internal ridge copper tube
	Fan	2 Axial Fans
	Dimensions&Weight	850×550×175 mm & 19kg
Box Volume (m³)		8 -16 m³
Optional Function		Heating, Electric standby system AC 220V/380V, CPR Valve

Features

KingClima V-300C Van Refrigeration System Features :

● Apply for all kinds of small refrigeration vans
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor , Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc
