KingClima K-860 Truck refrigeration units
KingClima K-860 Truck refrigeration units
Truck Refrigeration Units

K-860 Truck Refrigeration Unit

KingClima K-860 Truck refrigeration units is driven by vehicle engine and apply for big trucks with 40~50m³Truck body box to keep temperature range from -20℃ to +30℃.
Model : K-860
Driven Type : Non-independent engine driven
Application : 40~50m³
Temperature : -18℃～25℃
GET QUOTE
Introduction
Technical Data
Features
INQUIRY
Introduction

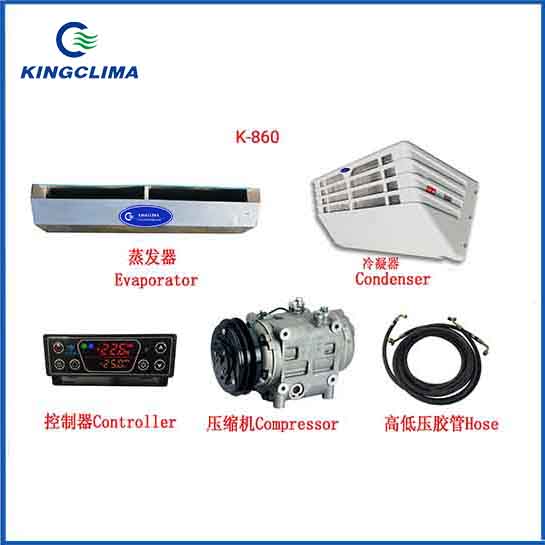

Brief Description of K-860 Truck Refrigeration Unit :

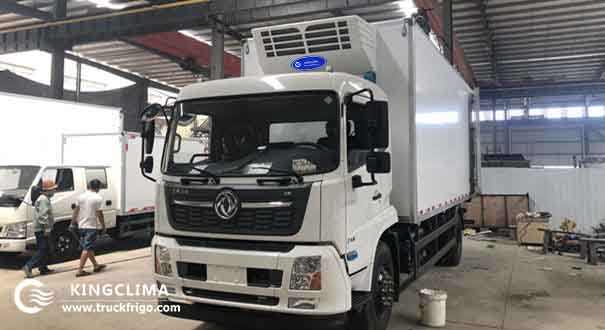

KingClima K-860 Truck refrigeration units is driven by vehicle engine and apply for big trucks with 40~50m³Truck body box to keep temperature range from -20℃ to +30℃. It is installed front mounting into the big truck boxes. The truck freezer units can keep fresh or frozen for different fresh fruits, milk ,ice cream ,vegetables, meat, dairy products, seafoods and so on.

Technical Data
Technical Data of K-860 Truck Refrigeration Unit :


Model K-860
Applicable Temperature -18℃～25℃
Cooling capacity 8000（0℃）
4200（-18℃）
Drive model Non-independent engine driven
Voltage DC (V) 24V
Compressor TM32/JS32(320 cc/r)
Refrigerant R404a
Charge 3.5~3.8Kg
Temperature adjustment Electronic digital display
Safety protect High and low pressure switch
Defrosting Hot gas defrost
Dimensions (mm) Evaporator 1715×530×305
Condenser 1600×625×605
Weight    (KG) Evaporator 45
Condenser 48
Box volume(m3) 42（-18℃）
48（0℃）
Features
Features of K-860 Truck Refrigeration Unit :

● Front Mounted unit and slim evaporator design
● Strong refrigerating, cooling fast
● Apply to all kinds of middle size refrigerated trucks
● Full digital control, easy to operate
