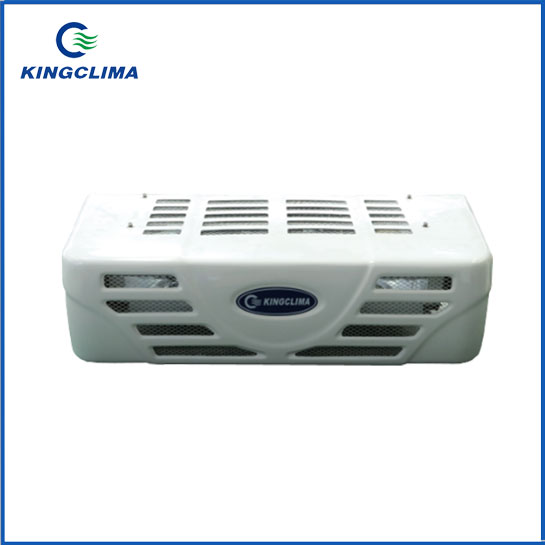

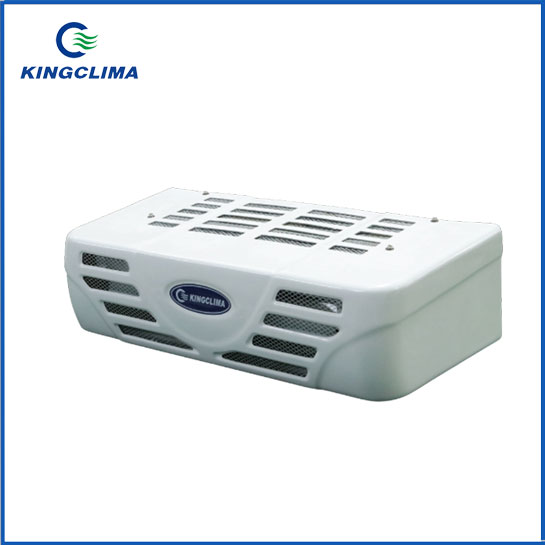

K-360C Truck Refrigeration Unit

K-360C is truck chiller unit which can keep temp in truck box from -5℃ to 30℃ and get our latest quotation list for whole set of truck reefer units.

Model: K-360C

Driven Type : Vehicle Engine Driven

Application : 10~15m³

Discription

Technical Data

Features

Application

INQUIRY

Discription

Brief Introduction of K-360C Refrigeration Unit for Truck

KingClima K-360C is chiller units for truck that have front mounting type and driven by vehicle engine and apply for 10-15 m³ truck body box.
For the K-360C refrigeration unit for truck is used for fresh transport that is for -5℃ to 15℃ temperature controlled.

KingClima K-360C Truck Refrigeration System Optional Functions

● ŸAC220V/1Ph/50Hz or AC380V/3Ph/50Hz
● ŸOptional electric standby system AC 220V/380V

Technical Data

Technical of K-360C Reefer Truck Refrigeration Unit

Model			K-360CC
Temperature Range In Container			-5℃ ~ +15℃

Cooling Capacity	0℃	+32℉	2920W
Compressor	Model		QP16
	Displacement		163cc/r
Condenser	Coil		Aluminum micro-channel parallel flow coils
	Fan		One Fan(DC12V/24V)
	Dimension		1010553230mm
	Weight		36kg

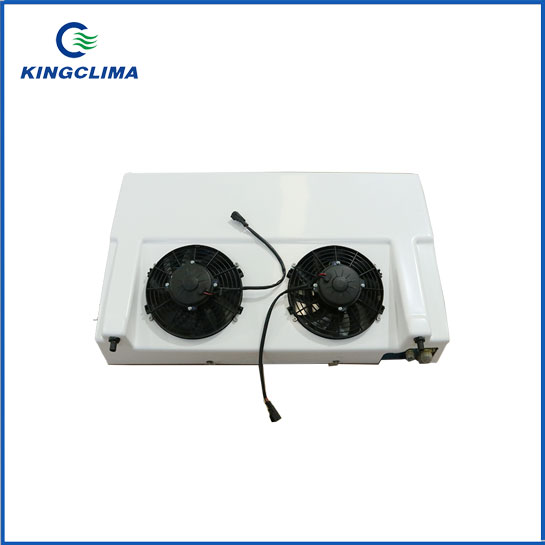

Evaporator	Coil		Copper Tube & Aluminum Fin

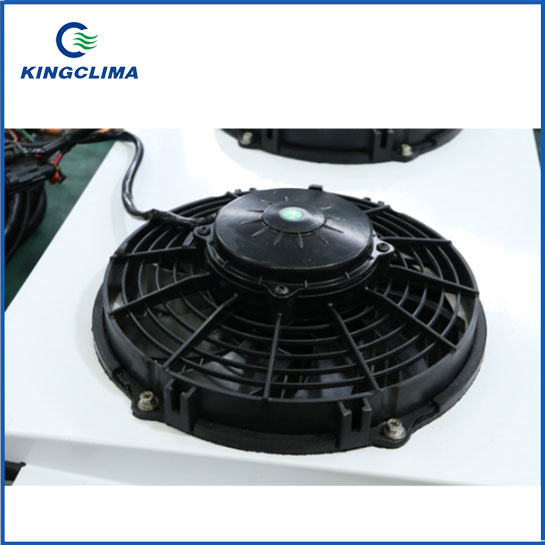

	Fan		Two Italy Spal Fans (DC12V/24V)
	Dimension		1080619200mm
	Weight		21 kg
Voltage			DC12V / DC24V
Refrigerant			R404a/ 1.3kg
Defrosting			Hot gas defrosting(Auto./Manual)
Application			10~15m³

Features

KingClima Transport Refrigeration System Features:

● Multi-function controller with microprocessor control system of truck reefer units
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor ,
● Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc.

Application

K-360C truck chiller units for JMC trucks
