K-360 Truck Refrigeration Units

K-360 Truck Refrigeration Unit

KingClima K-360 Truck chiller units have front mounting and rooftop mounting, driven by vehicle engine and apply for 10-15m³ Truck body box.

Driven Type : Vehicle Engine Driven

Cooling Capacity : 2920W (0℃) , 1607W(-18℃)

Compressor : 5s14/138cc/r

Application : 10~15m³

Introduction

Technical Data

Features

Application

INQUIRY

Introduction

Brief Description of K-360 Truck Refrigeration Units :

KingClima K-360 Truck chiller units have front mounting and rooftop mounting, driven by vehicle engine and apply for 10-15 m³ Truck body box.

Optional Functions of K-360 Truck Refrigeration Units :

● AC220V/1Ph/50Hz or AC380V/3Ph/50Hz
● Optional electric standby system AC 220V/380V

Technical Data

Model		K-360
Temperature Range in Container		-18℃ ~ +15℃
Cooling Capacity	0℃/+32℉	2920W
Cooling Capacity	-18℃/ 0℉	1607W
Compressor	Model	5s14
	Displacement	138cc/r
	Weight	8.9 Kg
Condenser	Coil	Aluminum micro-channel parallel flow coils
	Fan	One Fan (DC12V/24V)
	Dimensions	925430300
	Weight	27kg
Evaporator	Coil	Copper Tube & Aluminum Fin
	Fan	2 Fans (DC12V/24V)
	Dimensions	850550175
	Weight	19.5kg
Voltage		DC12V /24V
Air volume		1400m³/h
Refrigerant		R404a/1.3-1.4kg
Defrosting		Hot gas defrosting(Auto./Manual)
Application		10~15m³

Features

Features of K-360 Truck Refrigeration Units :

● Multi-function controller with microprocessor control system
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor ,Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc

Application

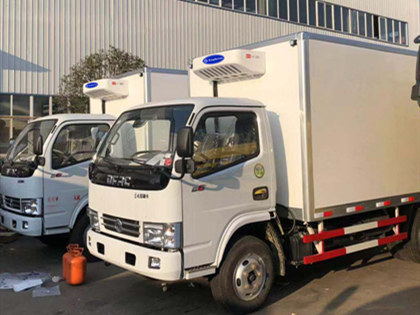

KingClima K-360 Truck Refrigeration Unit
