Small Mobile Trailer Refrigeration Units

KF-20 Mobile Cooler Trailer AC 220V (R448a)

The KF-20 mobile trailer refrigeration units are used for -20℃ to 10℃ temperature controlled for 20m³ box and powered by two solution 110V/220V for choice.
Model: KF-20
Voltage: AC220V/AC110V
Cooling Capacity: 3100W/10571BTU
Temperature Range: -20℃ to 10℃
Discription
Technical
Features
Application
INQUIRY
Discription

Brief Introduction Of KF-20 Small Mobile Refrigerated Trailer


KingClima is professional in the mobile trailer refrigeration unit for sale with over 15 years manufacturing and exporting experience. Our small refrigerated trailer for sale specifications is with KC-20 model and KF-20 model to suit different kinds of cooling solution (fresh and frozen for choices). We support the mobile trailer refrigeration unit sale or the whole set of small refrigerated trailer for sale.

The KF-20 mobile trailer refrigeration units are used for -20℃ to 10℃ temperature controlled for 20m³ box and powered by two solution 110V/220V for choice. This new design of KF-20 trailer refrigeration units with a very beautiful appearance and do some of new features. KF-20 model is for negative cold module -20℃ to 10℃ or -4℉ to 50℉. The application box is for 20m³, that is to say, you can use it on a 8 ft, 10 ft or 12 ft size box.

The most unique for KF-20 mobile cooler trailers is the refrigerant they use for is R448a refrigerant, whichis special for Europe market solution.

Power Supply Solution

★ 110V Solution:  For 8ft no need to add generator; 10ft and 12ft need to add a generator.
★ 220V Solution:  For 8ft/10ft/12ft no need to add generator.
Technical

Technical Data of KF-20 Mobile Trailer Refrigeration Units


Models KC-20 KF-20 KF-25 KF-30
Compressor WHP05100(33.6ml/rev) DSH356LV(35.6ml/rev) 2212GK(34.8ml/rev) VTH488LS(48.8ml/rev)
Cooling Capacity A.T.R U.N. Standard @40°C ambient 2100W 3100W 3100W 4100W
Power consumption 1340W 2540W 2400W 4260W
Refrigerant R134a/1.5KG R448a/1.2KG R404a/1.2KG R404a/3KG
Frequency AC220V-230V/50HZ/Single phase AC220V-230V/5 HZ /Single phase AC/115V/60HZ /Single phase AC220V-230V/ 60HZ/Three phase
Volume supply 20m³ 12-15m³ 12-15m³ 25m³
Defrosting 800W 1980W 1980W 2510W
Current consumption LRA 37A 50A 37A 66A
Current consumption FLA 6.1 A 9.9A 21A 9.5A
Net Weight 73Kg 76Kg 80Kg 110Kg
Evaporator blower flow rate (@0 static, pressure 650m³/h 1100m³/h 1100m³/h 2400m³/h
Condenser blower flow rate (@0 static, pressure) 1100m³/h 1000m³/h 1000m³/h 3600m³/h
Temperature range -5°C~10°C -20°C~10°C -20°C~10°C -25°C~-10°C
Protection class 54IP 54IP 54IP 54IP

Whole Set of Mobile Cooler Trailers for Sale Solution

We can also supply the whole set of mobile refrigerated trailers for your needs. If you have this demands on whole set of cooler trailer, pease ask for more details.

Small Refrigerated Trailers for Sale and Trailer Refrigeration Units for Sale - KingClima
Features

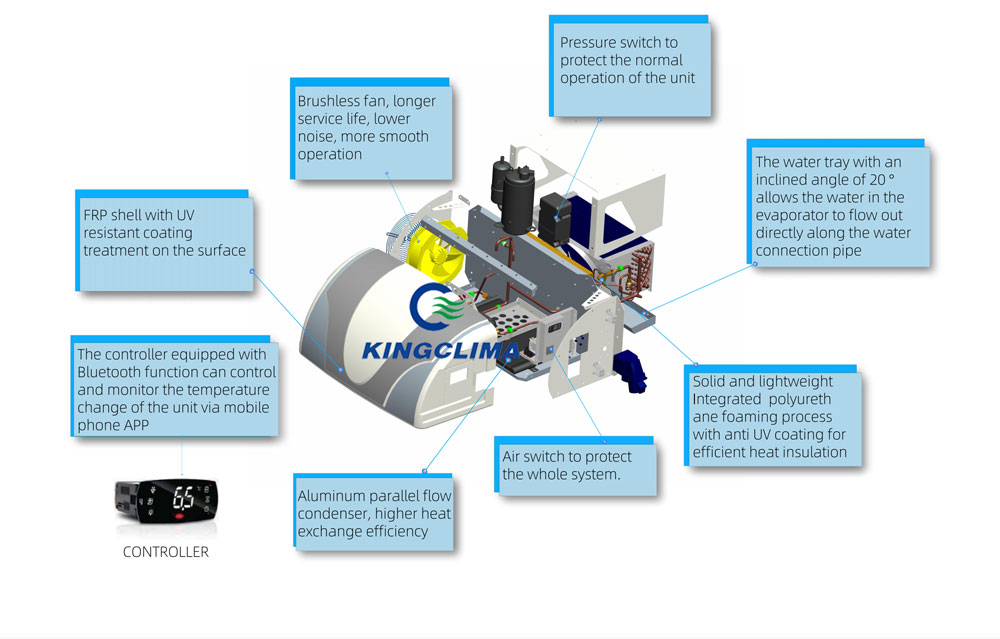

Features of KF-20 Mobile Trailer Refrigeration Units


  • ABS UV protection.
  • Danfoss expansion valve and pressure regulating valve.
  • Codan hoses and food-grade hoses.
  • Black spray treatment on the sheet metal of the condenser.
  • Italian CAREL brands controller.
  • Delphi fan connectors and SPAL fan.
  • Bluetooth can control temperature, moisture, time and light in your cell phone in 10 meter.
  • 100mm thickness PU isolating panel, better thermal insulation properties, make one-piece refrigeration unit design have a best cooling efficiency.
  • Evaporator is slant designed, avoid water gather, good for the water excreted to the outside.
small mobile trailer refrigeration units kingclima industry
Application
Typical Use ★ Events ★ Breakdown contingency / emergency temporary cold storage ★ Document storage ★ Restaurants / catering / food processors / seafood industry
