Reefer Unit For Box Truck

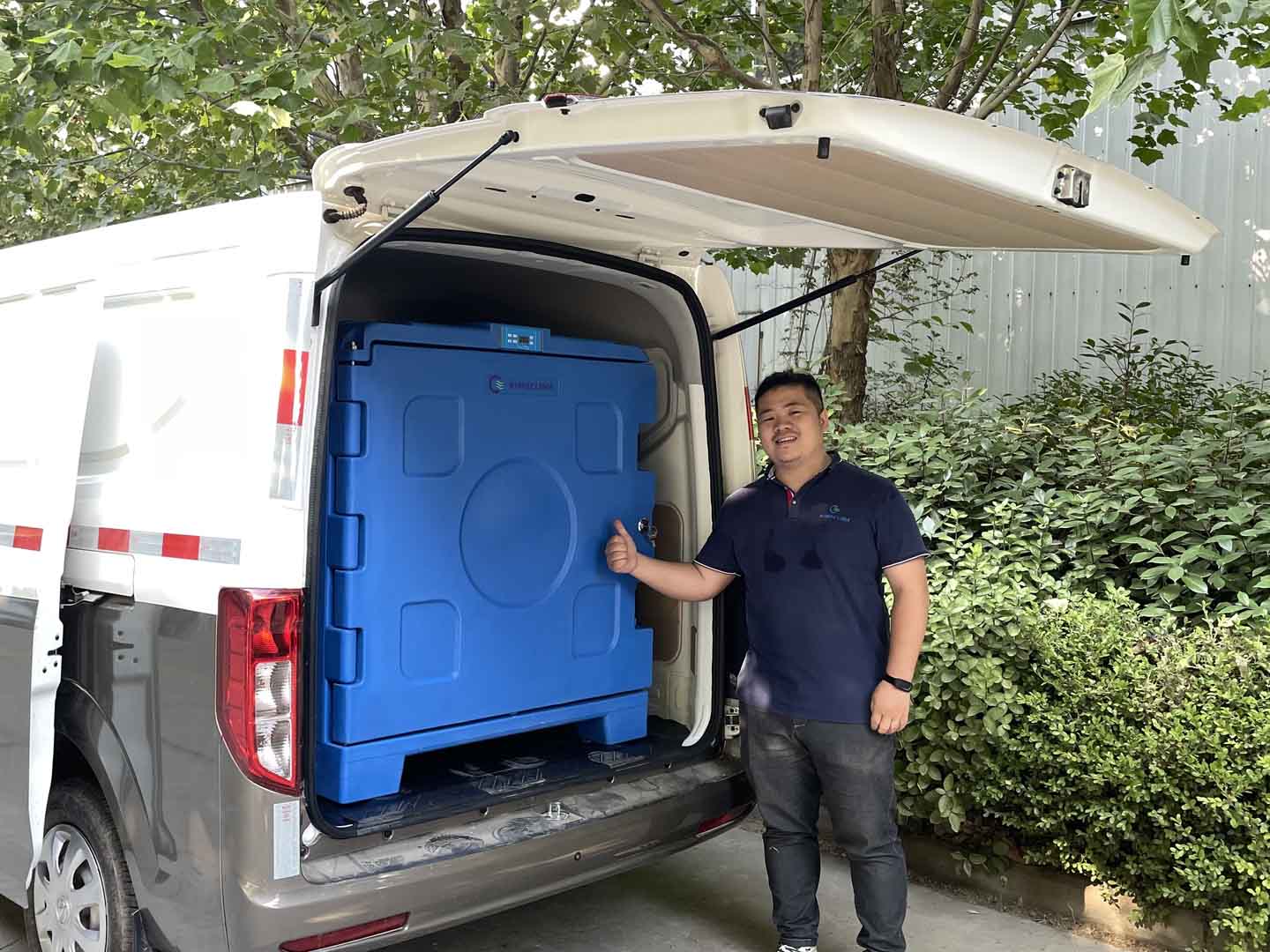

Reefer Unit For Box Truck FB150 is called an embedded refrigerated container due to its ingenious structural design. The external contours of the container are strictly optimized for commercial vehicle cargo box dimensions, and the bottom features a high-load-bearing sliding rail system for quick insertion and locking, or removal and unloading. Internally, it integrates a durable refrigeration unit and a high-efficiency insulation layer, ensuring a stable low-temperature environment even in delivery scenarios with frequent door openings and closings. This design perfectly solves the problem of temperature control in ordinary vehicles: when the refrigerated container is embedded in the truck bed, it becomes an integral part of the transport vehicle; when detached, it can be used as a temporary refrigerated storage unit. This "dual-purpose" feature significantly improves asset utilization.
| Reefer Unit For Box Truck |
| Model Number |
FB058 |
FB150 |
FB178 |
| Material: |
PE skin +PU foam ,100mm thickness panels |
| External Dimensions of box |
1500*1000*1100mm(59''*43''*39'') |
| Gross Capacity |
750L (198Gal) |
| Temperature Range |
0℃ to 10℃ |
-18℃ to -22℃ |
-20℃ to -25℃ |
| Voltage |
DC12V/24V/48V/60V |
DC48V/60V |
| Unit Power(W) |
320W |
650W |
820W |
| Gross Weight(KG) |
120KG |
| Refrigeration Units Model |
KC058 |
KC150 |
KC178 |
| Cooling capacity: |
320W |
640W |
820W |
| Applicated box volume |
0.5m³-1m³ |
2m³-5m³ |
4m³-6m³ |
| Refrigerant Gas（Type) |
R134a |
R134a |
R404a |
| Refrigerant Gas（Grams) |
500-550g |
600-650g |
600-650g |
| With ambient temperature +35℃（+95°F) |
