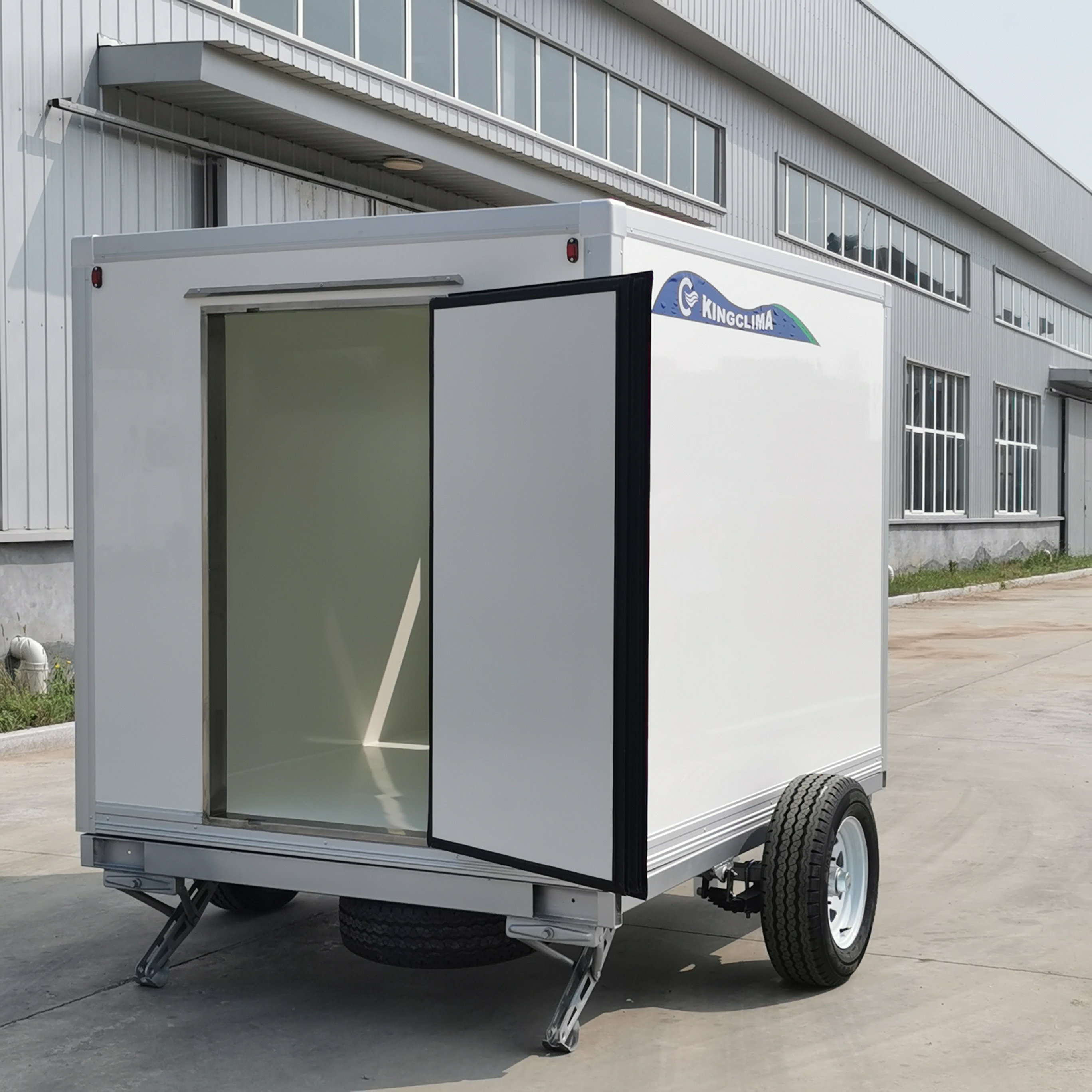

Reefer Trailer KF-20 series delivers far more than just refrigeration capabilities; it provides a profound sense of security. For operators who rely on cold chain logistics, a single unexpected equipment failure can spell disaster—resulting in the spoilage of an entire shipment of ingredients, a missed critical delivery, or even irreparable damage to a hard-earned reputation. The KF-20 was engineered specifically to eliminate such uncertainties. Through rigorous quality control and robust construction, it establishes an impenetrable line of defense, ensuring users remain confident and composed—whether facing the high-frequency demands of peak seasons, the scorching heat of summer, or the rigors of long-distance transport. This unwavering stability allows operators to channel their energy into expanding their core business, rather than constantly worrying about equipment malfunctions.
The Reefer Trailer KF-20 is also quietly reshaping the dynamics of human connection. When a food truck owner can consistently serve freshly made sandwiches, a bond of trust—rooted in quality—is forged with their customers. When an online fresh-food retailer can guarantee that every piece of produce reaches the community in pristine condition, a sustainable loyalty is cultivated between the platform and its users. And when event organizers no longer have to scramble over food storage logistics, they are free to focus with greater ease on curating an exceptional on-site experience. The KF-20 acts as a silent connector; through its unwavering temperature control, it safeguards the fulfillment of every promise made within the commercial chain, allowing the human element behind every transaction to flow freely and seamlessly.
Ultimately, what the Reefer Trailer KF-20 aims to provide its users is the confidence to operate with composure. No longer must you worry about abnormal temperature readings in your refrigeration unit while packing up late at night; no longer must you face the painful necessity of turning down large orders due to insufficient equipment capacity or instability; and no longer must you feel constrained by the logistical limitations of refrigeration equipment when venturing into new business opportunities. With its compact footprint, it delivers reliable cooling power; with its intelligent controls, it simplifies complex management tasks; and with its enduring durability, it stands as a steadfast companion through every busy day and night. Choosing the KF-20 means choosing a business model defined by fewer worries and greater certainty—making the journey toward realizing your dreams smoother and more expansive, thanks to this rock-solid assurance.
| Models |
KC-20 |
KF-20 |
KF-25 |
KF-30 |
| Compressor |
WHP05100(33.6ml/rev) |
DSH356LV(35.6ml/rev) |
2212GK(34.8ml/rev) |
VTH488LS(48.8ml/rev) |
| Cooling Capacity A.T.R U.N. Standard @40°C ambient |
2100W |
3100W |
3100W |
4100W |
| Power consumption |
1340W |
2540W |
2400W |
4260W |
| Refrigerant |
R134a/1.5KG |
R448a/1.2KG |
R404a/1.2KG |
R404a/3KG |
| Frequency |
AC220V-230V/50HZ/Single phase |
AC220V-230V/5 HZ /Single phase |
AC/115V/60HZ /Single phase |
AC220V-230V/ 60HZ/Three phase |
| Volume supply |
20m³ |
12-15m³ |
12-15m³ |
25m³ |
| Defrosting |
800W |
1980W |
1980W |
2510W |
| Current consumption LRA |
37A |
50A |
37A |
66A |
| Current consumption FLA |
6.1 A |
9.9A |
21A |
9.5A |
| Net Weight |
73Kg |
76Kg |
80Kg |
110Kg |
| Evaporator blower flow rate (@0 static, pressure |
650m³/h |
1100m³/h |
1100m³/h |
2400m³/h |
| Condenser blower flow rate (@0 static, pressure) |
1100m³/h |
1000m³/h |
1000m³/h |
3600m³/h |
| Temperature range |
-5°C~10°C |
-20°C~10°C |
-20°C~10°C |
-25°C~-10°C |
| Protection class |
54IP |
54IP |
54IP |
54IP |
