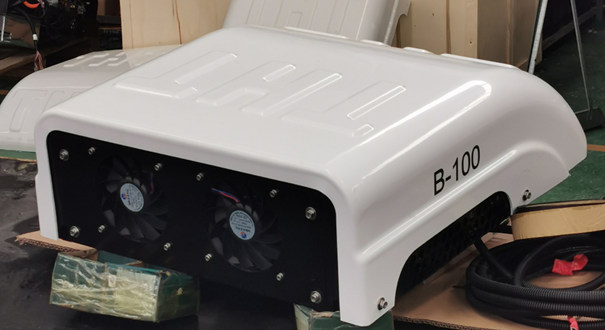

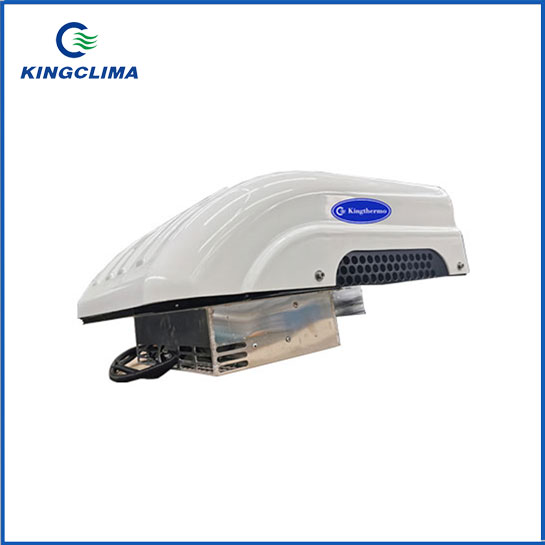

B-100 Integrated DC Electric Reefer Unit
Zero Emission Refrigeration Units

B-100 Tricycle Refrigeration Units

B-100 is for last 1km frozen express to store, it uses DC 12V 24V voltage to install electric tricycles.
Model : B-100
Application : Tricycle
Power Consumption : 300~800W
Dimension (mm) : 700×600×215
Introduction
Technical Data
Features
INQUIRY
Introduction
Brief Introduction of B-100 Integrated DC Electric Reefer Unit :

B-100 is KingClima freezer unit for motor tricycle, it is DC48V/60V voltage refrigeration units especially designed for the short distance frozen products , such as meat, ice creams, seafoods and so on delivery.

It is designed for small market freezing delivery, so only with an electric tricycle and to add an external freezer unit with KingClima B-100 will help you to realize the last one Kilometer transport.

Tips: For the fresh chiller delivery (-5℃)temperature controlled demands, please see B-100C tricycle refrigeration unit.

Technical Data
 Model B-100
Structural Pattern Integrated unit
Cooling capacity
500~1000W(-18℃)
Power Consumption
300~800W

Volume of container (m3)

≤ 1.5(-18℃)
Condenser Parallel flow
Evaporator copper pipe
Compressor YQ25D48 (25cc/r)
Compressor Voltage
DC48V/60V
Refrigerant R404a 0.5~0.6 Kg
Dimension (mm) 700×600×215
(not include evaporator))
Features
Features of B-100 Freezer Unit For Motor Tricycle :

● Full electric refrigeration units,DC12V-DC72V are optional
● Quick Installation, simple maintenance and low maintenance cost
● Full digital control, easy to operate
● DC powered driven (12V/24V/48V/72V/96V etc.)
● Green and Environmental Protection.
