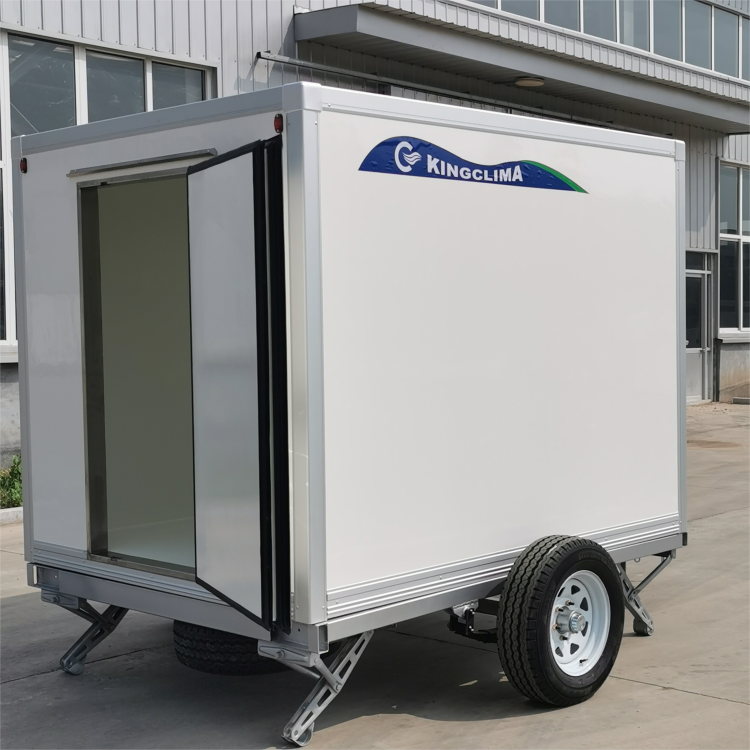

Refrigerated Trailer KF-20 is a compact, high-efficiency refrigeration system meticulously engineered for small refrigerated trailers and mobile cold storage units. Powered by a standard AC 220V supply, this unit delivers stable and reliable cooling performance—whether the trailer is stationary or in transit—fully meeting the temperature control requirements of diverse mobile applications.
With a strong focus on environmental protection and energy efficiency, the Refrigerated Trailer KF-20 utilizes the new eco-friendly refrigerant R448A. While ensuring rapid temperature pull-down and precise climate control, the system strictly adheres to current environmental regulations, thereby facilitating eco-conscious operation. The unit has undergone rigorous testing to ensure that it maintains consistently outstanding performance, even under variable environmental conditions, providing a robust guarantee of quality for fresh produce, catering ingredients, and other perishable goods.
In terms of core hardware, the Refrigerated Trailer KF-20 features a durable compressor, optimized condenser and evaporator components, and an intelligent digital control system. This integrated configuration not only enables precise temperature regulation but also significantly simplifies operational procedures, allowing users to effortlessly set and monitor the internal temperature. Structurally, the unit retains the advantages of a compact and lightweight design; it offers quick and convenient installation, requires minimal routine maintenance, and substantially reduces overall operating costs for the user.
Distinguished by its quiet operation, stability, reliability, and long service life, the KF-20 is widely applicable across various sectors—including small-scale cold storage, mobile catering services, fresh food distribution, and on-site refrigeration for outdoor events. It serves as an indispensable asset for professional users and represents the ideal choice for those seeking a flexible, high-efficiency mobile refrigeration solution.
| Models | KC-20 | KF-20 | KF-25 | KF-30 |
| Compressor | WHP05100(33.6ml/rev) | DSH356LV(35.6ml/rev) | 2212GK(34.8ml/rev) | VTH488LS(48.8ml/rev) |
| Cooling Capacity A.T.R U.N. Standard @40°C ambient | 2100W | 3100W | 3100W | 4100W |
| Power consumption | 1340W | 2540W | 2400W | 4260W |
| Refrigerant | R134a/1.5KG | R448a/1.2KG | R404a/1.2KG | R404a/3KG |
| Frequency | AC220V-230V/50HZ/Single phase | AC220V-230V/5 HZ /Single phase | AC/115V/60HZ /Single phase | AC220V-230V/ 60HZ/Three phase |
| Volume supply | 20m³ | 12-15m³ | 12-15m³ | 25m³ |
| Defrosting | 800W | 1980W | 1980W | 2510W |
| Current consumption LRA | 37A | 50A | 37A | 66A |
| Current consumption FLA | 6.1 A | 9.9A | 21A | 9.5A |
| Net Weight | 73Kg | 76Kg | 80Kg | 110Kg |
| Evaporator blower flow rate (@0 static, pressure | 650m³/h | 1100m³/h | 1100m³/h | 2400m³/h |
| Condenser blower flow rate (@0 static, pressure) | 1100m³/h | 1000m³/h | 1000m³/h | 3600m³/h |
| Temperature range | -5°C~10°C | -20°C~10°C | -20°C~10°C | -25°C~-10°C |
| Protection class | 54IP | 54IP | 54IP | 54IP |
