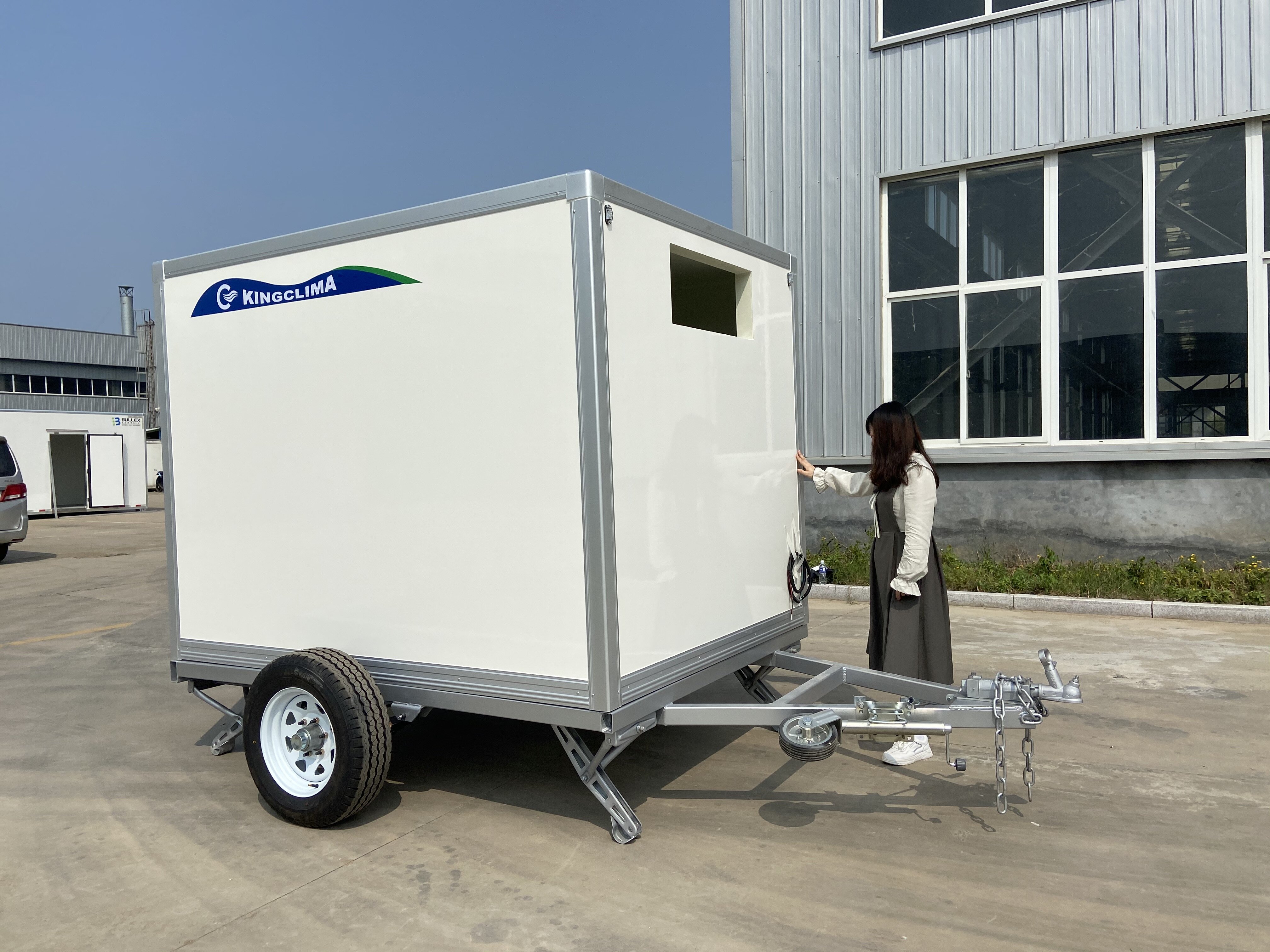

Fridge For Tractor Trailer KF-20 is accelerating the cold chain logistics industry's transition toward greener and more intelligent operations.
It not only meets current market demands for compact refrigeration equipment but, through its forward-thinking eco-friendly design philosophy, also empowers users to confidently navigate increasingly stringent industry regulations. As global controls on high-GWP (Global Warming Potential) refrigerants continue to tighten, the R448A eco-friendly refrigerant selected for the KF-20 not only complies with current environmental standards but also shields users from the potential risk of needing to replace equipment due to future policy shifts, thereby endowing the unit with extended market longevity.
The lightweight design and inherent flexibility of the KF-20 align perfectly with emerging trends in "last-mile" urban delivery and community-based micro-warehousing. It serves as a flexible complement to fixed cold storage facilities and can be rapidly deployed to marketplaces, sporting events, or emergency response sites; its "plug-and-play" functionality significantly boosts response speeds at the final stages of the cold chain. For modern enterprises striving for operational efficiency, this rapid deployment capability translates into the agility needed to seize business opportunities and respond effectively to unforeseen demands.
| Models | KC-20 | KF-20 | KF-25 | KF-30 |
| Compressor | WHP05100(33.6ml/rev) | DSH356LV(35.6ml/rev) | 2212GK(34.8ml/rev) | VTH488LS(48.8ml/rev) |
| Cooling Capacity A.T.R U.N. Standard @40°C ambient | 2100W | 3100W | 3100W | 4100W |
| Power consumption | 1340W | 2540W | 2400W | 4260W |
| Refrigerant | R134a/1.5KG | R448a/1.2KG | R404a/1.2KG | R404a/3KG |
| Frequency | AC220V-230V/50HZ/Single phase | AC220V-230V/5 HZ /Single phase | AC/115V/60HZ /Single phase | AC220V-230V/ 60HZ/Three phase |
| Volume supply | 20m³ | 12-15m³ | 12-15m³ | 25m³ |
| Defrosting | 800W | 1980W | 1980W | 2510W |
| Current consumption LRA | 37A | 50A | 37A | 66A |
| Current consumption FLA | 6.1 A | 9.9A | 21A | 9.5A |
| Net Weight | 73Kg | 76Kg | 80Kg | 110Kg |
| Evaporator blower flow rate (@0 static, pressure | 650m³/h | 1100m³/h | 1100m³/h | 2400m³/h |
| Condenser blower flow rate (@0 static, pressure) | 1100m³/h | 1000m³/h | 1000m³/h | 3600m³/h |
| Temperature range | -5°C~10°C | -20°C~10°C | -20°C~10°C | -25°C~-10°C |
| Protection class | 54IP | 54IP | 54IP | 54IP |
