Freezer Units For Pickup Trucks - FB150 Cooler For Pickup Truck Brief Introduction

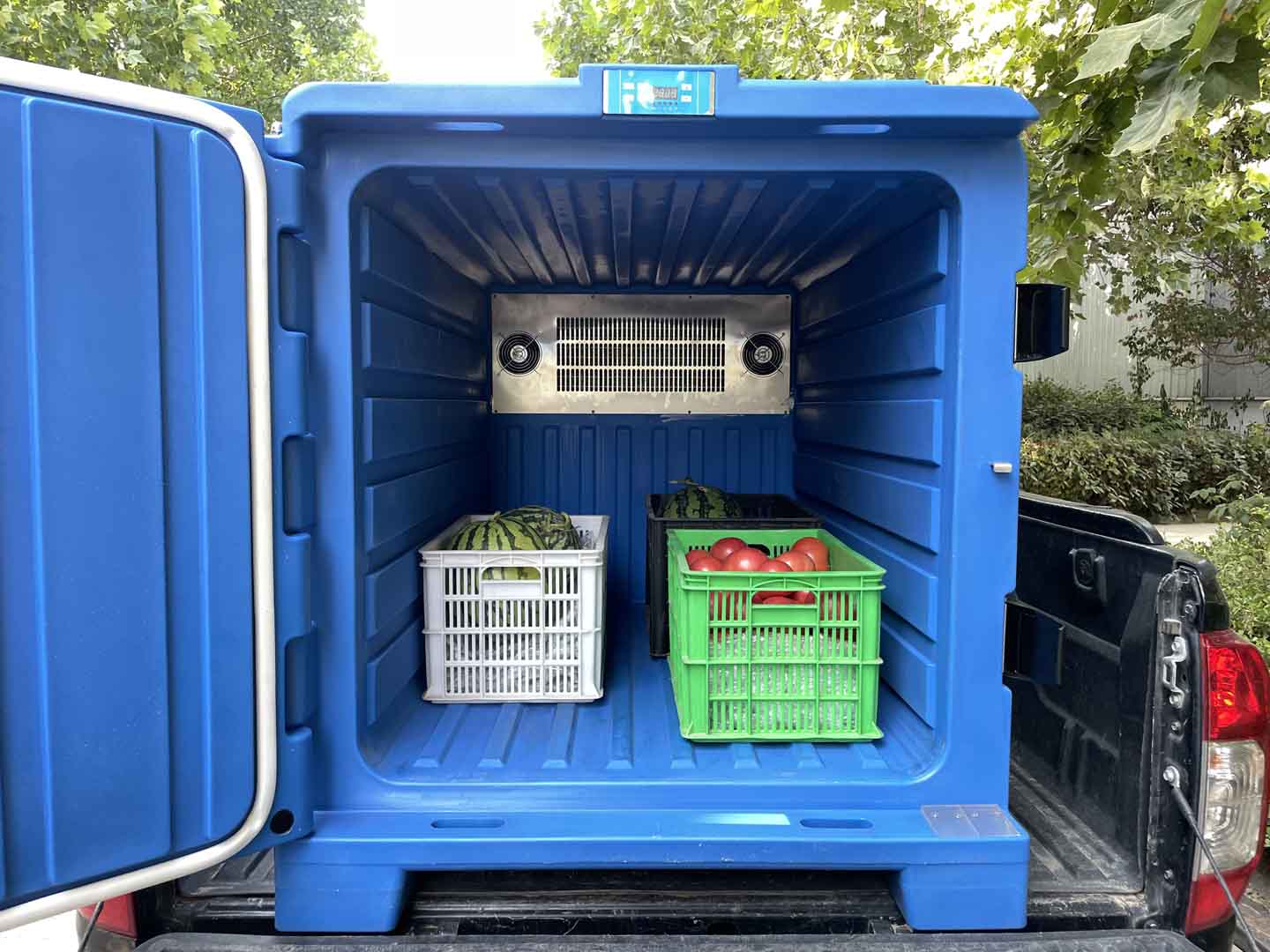

It is mobile cold container with refrigeration units that can be applied for trucks, pickup trucks, vans, tricycles, motorcycle...it is mainly used for perishable cargoes delivery. It is also called as slip in refrigerated truck box, because the cold container is slipped into the trucks or vans. It likes a portable refrigerator on all kinds of vehicles cold chain solution.
| Freezer Units For Pickup Trucks |
| Model Number |
FB058 |
FB150 |
FB178 |
| Material: |
PE skin +PU foam ,100mm thickness panels |
| External Dimensions of box |
1500*1000*1100mm(59''*43''*39'') |
| Gross Capacity |
750L (198Gal) |
| Temperature Range |
0℃ to 10℃ |
-18℃ to -22℃ |
-20℃ to -25℃ |
| Voltage |
DC12V/24V/48V/60V |
DC48V/60V |
| Unit Power(W) |
320W |
650W |
820W |
| Gross Weight(KG) |
120KG |
| Refrigeration Units Model |
KC058 |
KC150 |
KC178 |
| Cooling capacity: |
320W |
640W |
820W |
| Applicated box volume |
0.5m³-1m³ |
2m³-5m³ |
4m³-6m³ |
| Refrigerant Gas（Type) |
R134a |
R134a |
R404a |
| Refrigerant Gas（Grams) |
500-550g |
600-650g |
600-650g |
| With ambient temperature +35℃（+95°F) |
