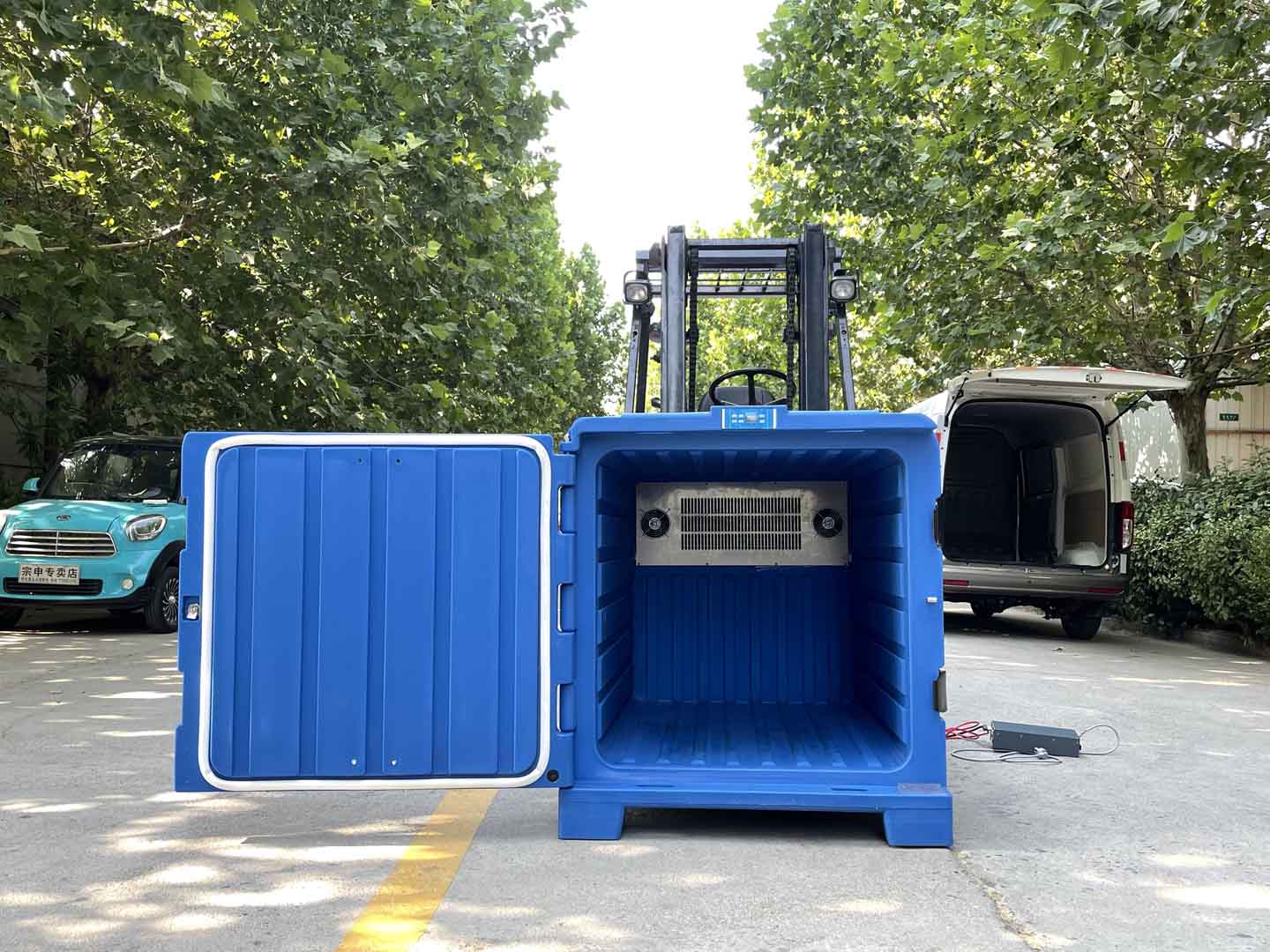

Freezer Truck Box FB150 is a highly integrated mobile refrigerated container designed specifically for last-mile cold chain logistics delivery. Its core feature is its independent, professional refrigeration unit, which precisely controls the internal temperature to ensure the quality and safety of perishable goods such as fresh produce, dairy products, and pharmaceuticals during transport. Unlike traditional large refrigerated containers, the FB150's design emphasizes "embedding and mobility." Its standardized dimensions allow it to easily slide into the cargo boxes of trucks, pickups, and even three-wheeled motorcycles, instantly transforming ordinary vehicles into professional refrigerated trucks. This plug-and-play cold chain solution significantly reduces users' equipment investment costs, solves the pain point of "last-mile" cold chain disruptions, and is a flexible and efficient temperature-controlled transport vehicle in modern urban delivery systems.
| Freezer Truck Box |
| Model Number |
FB058 |
FB150 |
FB178 |
| Material: |
PE skin +PU foam ,100mm thickness panels |
| External Dimensions of box |
1500*1000*1100mm(59''*43''*39'') |
| Gross Capacity |
750L (198Gal) |
| Temperature Range |
0℃ to 10℃ |
-18℃ to -22℃ |
-20℃ to -25℃ |
| Voltage |
DC12V/24V/48V/60V |
DC48V/60V |
| Unit Power(W) |
320W |
650W |
820W |
| Gross Weight(KG) |
120KG |
| Refrigeration Units Model |
KC058 |
KC150 |
KC178 |
| Cooling capacity: |
320W |
640W |
820W |
| Applicated box volume |
0.5m³-1m³ |
2m³-5m³ |
4m³-6m³ |
| Refrigerant Gas（Type) |
R134a |
R134a |
R404a |
| Refrigerant Gas（Grams) |
500-550g |
600-650g |
600-650g |
| With ambient temperature +35℃（+95°F) |
