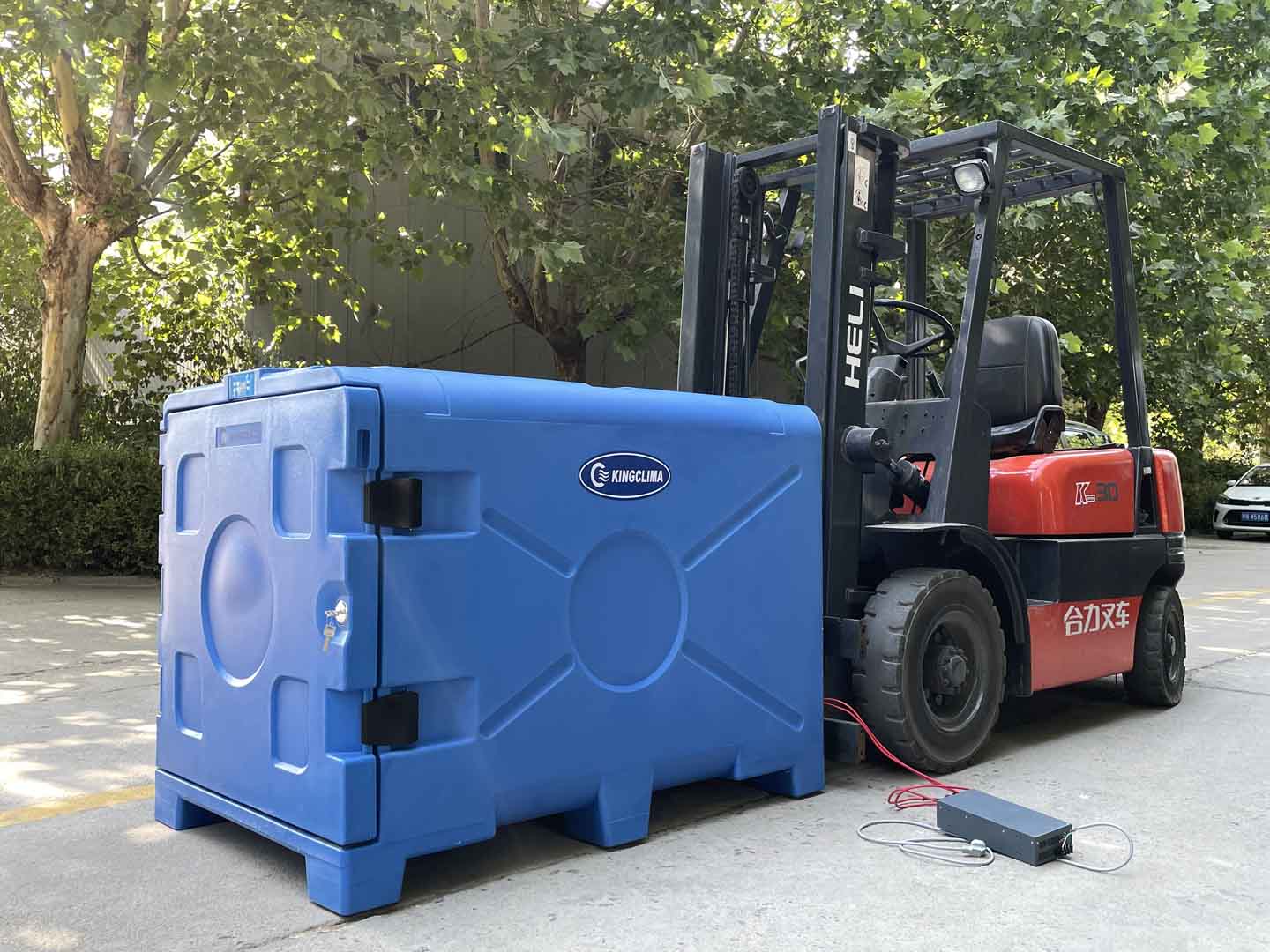

Reefer Box FB150 is a mobile refrigerated container designed specifically for transporting perishable goods. Equipped with a high-efficiency refrigeration system, it is suitable for various vehicles including trucks, pickups, vans, tricycles, and motorcycles. Also known as an embedded refrigerated container, it is named for its ability to slide flexibly into trucks or vans, offering convenient operation and high adaptability. This device, like a portable refrigerator, provides a reliable cold chain solution for various vehicles, ensuring goods remain at a constant low temperature during transport, meeting the delivery needs of temperature-sensitive items such as fresh produce and food. The FB150's design balances mobility and functionality, making it an important tool for improving transportation efficiency and ensuring cargo quality.
| Reefer Box |
| Model Number |
FB058 |
FB150 |
FB178 |
| Material: |
PE skin +PU foam ,100mm thickness panels |
| External Dimensions of box |
1500*1000*1100mm(59''*43''*39'') |
| Gross Capacity |
750L (198Gal) |
| Temperature Range |
0℃ to 10℃ |
-18℃ to -22℃ |
-20℃ to -25℃ |
| Voltage |
DC12V/24V/48V/60V |
DC48V/60V |
| Unit Power(W) |
320W |
650W |
820W |
| Gross Weight(KG) |
120KG |
| Refrigeration Units Model |
KC058 |
KC150 |
KC178 |
| Cooling capacity: |
320W |
640W |
820W |
| Applicated box volume |
0.5m³-1m³ |
2m³-5m³ |
4m³-6m³ |
| Refrigerant Gas（Type) |
R134a |
R134a |
R404a |
| Refrigerant Gas（Grams) |
500-550g |
600-650g |
600-650g |
| With ambient temperature +35℃（+95°F) |
