KingClima V-300 Reefer Van Freezer Units
KingClima V-300 Reefer Van Freezer Units
KingClima V-300 Reefer Van Freezer Units
Van Refrigeration Units

V-300 Van Refrigeration Units

V-300 van freezer units apply to small van and medium refrigerated cargo vans with 8 -16 m³ van body box.
Model : V-300
Cooling Capacity : 3000W(0℃)1600W(-18℃)
Application : 8 -16 m³
Compressor : 5s14 / 138cc/r
Introduction
Technical Data
Features
Application
INQUIRY
Introduction
Description Of V-300 Reefer Van Freezer Units :

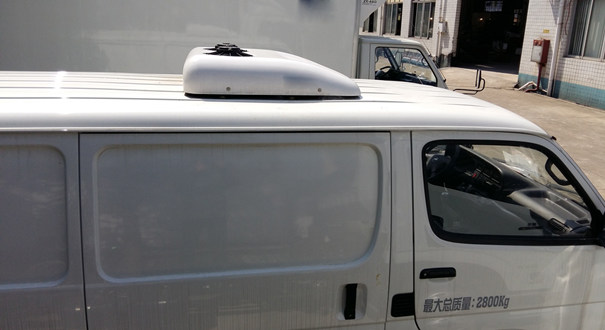

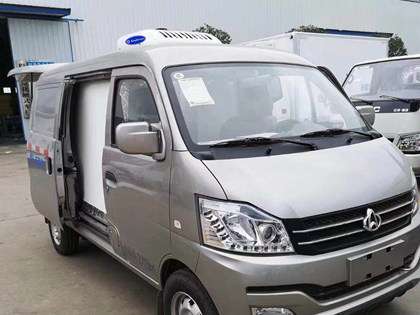

KingClima V-300 reefer van freezer units are rooftop mounting, driven by vehicle engine and apply for 8-16 m³ van container box. V-300 van freezer units apply to small van and medium refrigerated cargo vans with 6-17m³ van body box.
The V-300 freezer unit for cargo van is used for transporting frozen foods such as ice creams , seafood , meat and so on.

Optional Functions Of V-300 Reefer Van Freezer Units :

● AC220V/1Ph/50Hz or AC380V/3Ph/50Hz
● Optional electric standby system AC 220V/380V
Technical Data
Model V-300
Temperature Range In Container -18℃ ~ +15℃
Cooling Capacity 0℃ +32℉ 3000W(0℃)1600W(-18℃)
Driven Model Non-independent Engine Driven
Voltage DC (V) 12V/24V
Refrigerant R404a
Refrigerant Charge 1.3Kg ~ 1.4Kg
Box Temperature Adjustment Electronic digital display
Safety Protect High and low pressure switch
Defrosting Hot gas defrost
Compressor Model 5s14
  Displacement 138cc/r

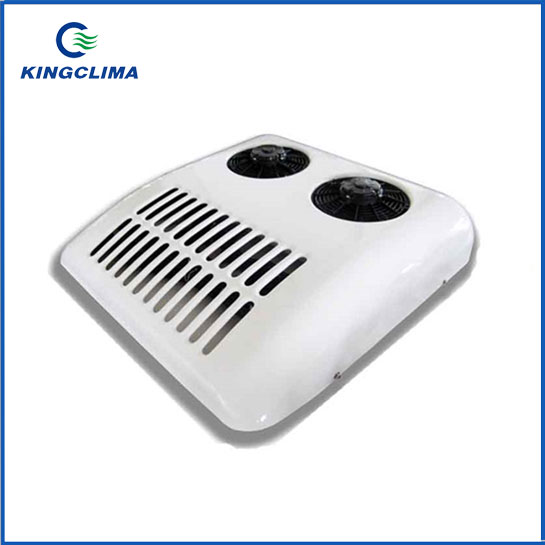

Condenser Coil Aluminum micro-channel parallel flow coils
  Fan 2 Axial Fan
  Dimensions&Weight 880×865×210 mm & 20kg
Evaporator Coil Aluminum foil with internal ridge copper tube
  Fan 2Axial Fans
  Dimensions&Weight 850×550×175 mm & 19 kg
Box Volume (m³) 0℃ 15m³
  -18℃ 10m³
Optional Function Electric standby system AC 220V/380V, CPR Valve
Features
Features of V-300 Reefer Van Freezer Units :

● Apply for all kinds of small refrigeration vans
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor , Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc
