K-560 Reefer Unit for Bock Truck
K-560 Reefer Unit for Bock Truck
K-560 Reefer Unit for Bock Truck
Truck Refrigeration Units

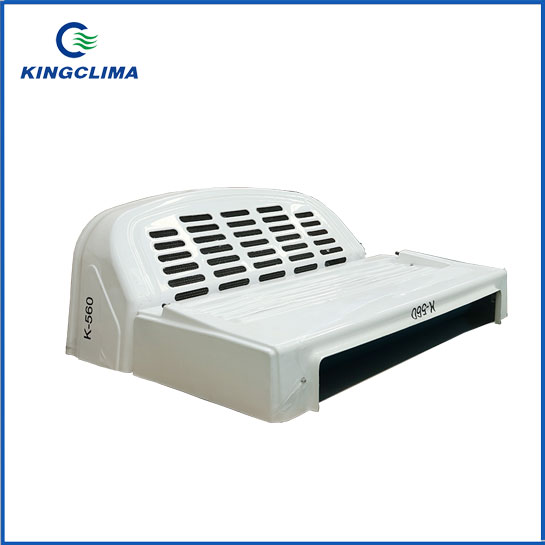

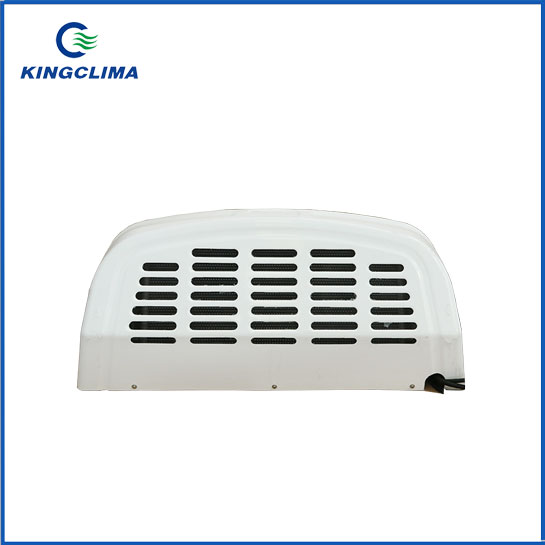

K-560 Truck Refrigeration Unit

Are you looking for reliable Chinese suppliers to begin reefer truck business? Contact KingClima today with our best quotation list and service!
Model: K-560
Driven Type : Vehicle Engine Driven
Application: 20~30m³ truck box
Temperature: -30℃ to +30℃
Technical Data

Brief Introduction of K-560 Reefer Unit for Bock Truck

Front mounted unit K-560 truck refrigeration unit also called truck frozen unit, directly driven by vehicle engine, mainly used for transport fresh or frozen goods in 5.2m refrigerated truck box, application on the box size of 20~30m³, temperature range from -25℃ to +30℃. Even if the unit at the high temperature environment or open door constantly, refrigeration unit still have a high performance.

So are you looking for a reliable Chinese truck reefer units for sale supplier? Call KingThermo today with our best quotation list and service!

Technical Data

Technical of K-560 Truck Freezer Units

Model K-560
Temperature Range(In Container) -20℃ ~ +30℃
Cooling Capacity 0℃(+32℉) 5750W / 6745Kcal / 19800 BTU
-20℃( -0.4℉) 2830 W / 3489Kcal / 10240BTU

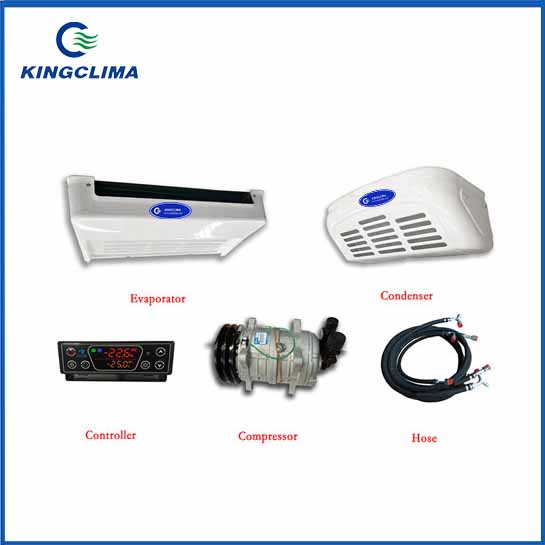

Compressor Model QP16
Displacement 163cc/r
Weight 8.9kg
Condenser Coil Aluminum micro-channel parallel flow coils
Fan Two Fans (DC12V/24V)
Dimensions 1270X590x416mm
Weight 47kg
Evaporator Coil Copper Tube & Aluminum Fin
Fan Two Fans (DC12V/24V)
Air flow 1950m³/h
Dimensions 1320×635×200 mm
Weight 34kg
Voltage DC12V / DC24V
Refrigerant R404a/ 2.8kg
Defrosting Hot gas defrosting(Auto./Manual)
Application 20~30m³

● Multi-function controller with microprocessor control system of truck reefer units
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor ,
● Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc.
