Truck Refrigeration Units

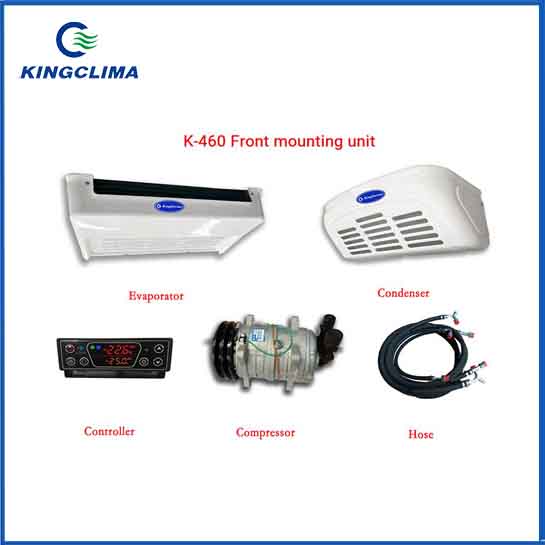

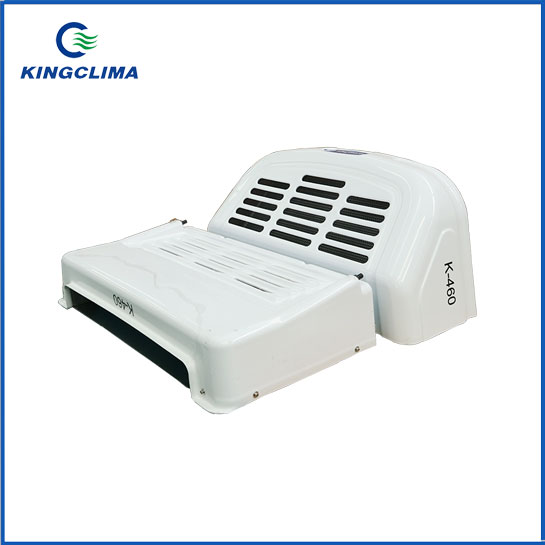

K-460 Truck Refrigeration Unit

KingClima K-460 truck freezer unit is in split structure and driven by the vehicle engine. It is especially designed for the medium or big trucks with 18~25m³ volume size or 5.2 meter length truck body to keep temperature range from -18℃ to +30℃.
Cooling Capacity : 0℃/+30℃ -18℃+30℃
Compressor : QP16 Model
Air volume : 910m³/h
Refrigerant : R404a
Introduction
Technical Data
Product features
Application
INQUIRY
Introduction
Brief Introduction of K-460 Box Truck Reefer Units for Sale

KingClima K-460 reefer unit for truck have front mounting and rooftop mounting, driven by vehicle engine and apply for medium or big trucks with 18~25m³Truck body box or 5.2 meter length truck body to keep temperature range from -20℃ to +30℃.

The K-460 box truck reefer uni with chiller and freezing function for transporting fresh fruits, milk ,ice cream ,vegetables, meat, dairy products and seafood…


K-460 Box Truck Reefer Unit System Optional Functions


● AC220V/1Ph/50Hz or AC380V/3Ph/50Hz
● Optional electric standby system AC 220V/380V

Technical Data
Model K-460
Temperature Range In Container -30℃ ~ +30℃
Cooling Capacity 0℃ +32℉ 4500 / 15354BTU
-20℃ 0℉ 2260 W/ 7848 BTU
Compressor Model QP16
Displacement 163cc/r
Weight 8.9kg

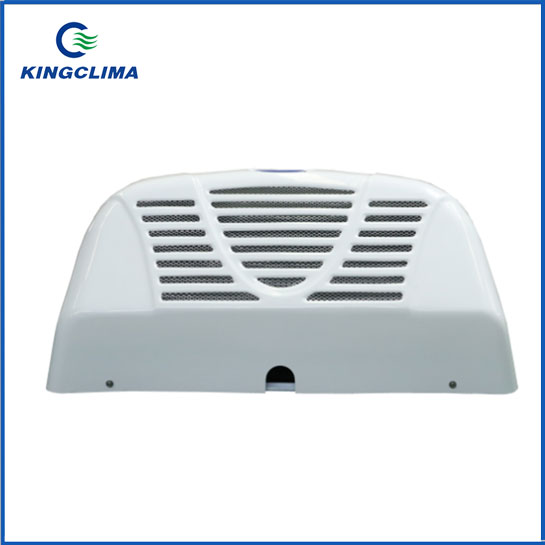

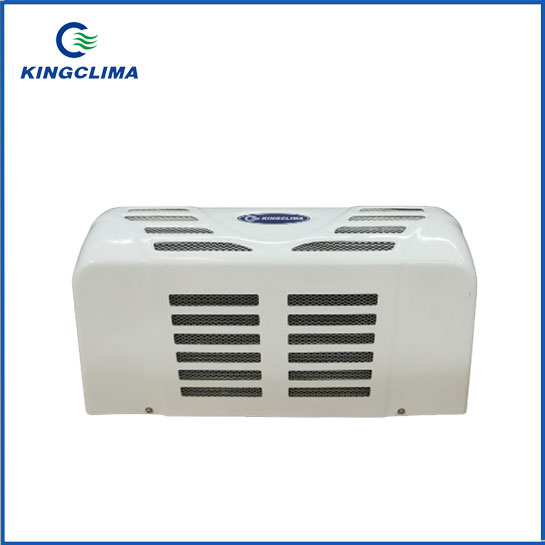

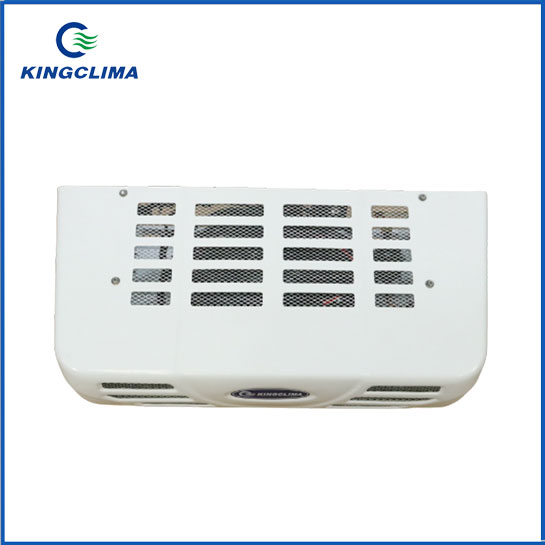

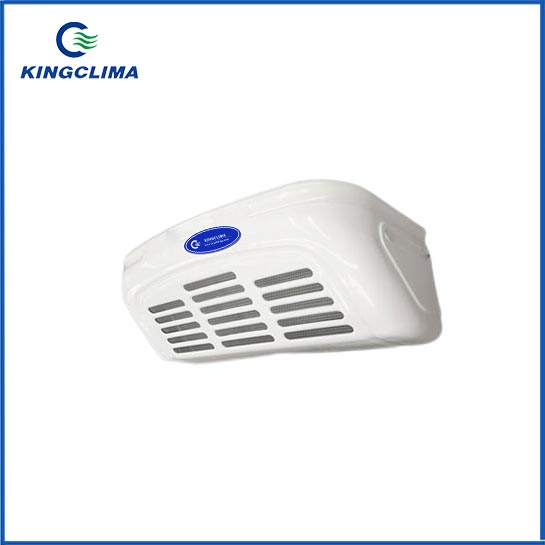

Condenser Coil Copper Tube & Aluminum Fin

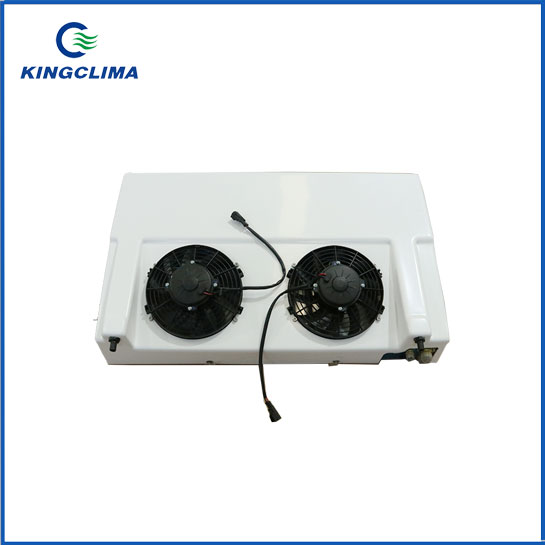

Fan Two Fans (DC12V/24V)
Dimensions  1148×475×388mm
Weight 35 kg

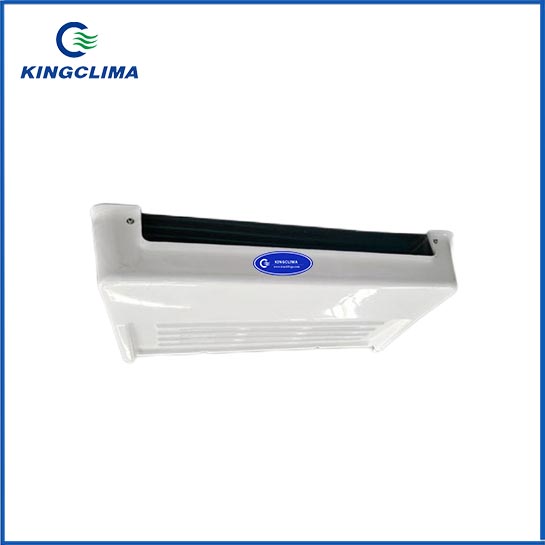

Evaporator Coil Copper Tube & Aluminum Fin
Fan Two Fans (DC12V/24V)
Dimensions 1016×635×230 mm
Weight 21 kg
Voltage DC12V / DC24V
Refrigerant R404a/ 2.4kg
Defrosting Hot gas defrosting(Auto./Manual)
Application 18~30m³
Product features

K-460 Transport Reefer Unit for Truck Features


● Multi-function controller with microprocessor control system of truck reefer units
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor ,
 Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc
Application
Front mounted unit K-460 truck refrigeration unit also called truck frozen unit, directly driven by vehicle engine, with 4500W cooling capacity at 0℃, mainly used for transport fresh or frozen goods in 4.0~4.5m refrigerated truck box, application on the box size of 18~28m³, temperature range from -25℃ to +25℃. Even if the unit at the high temperature environment or open door constantly, refrigeration unit still have a high performance.

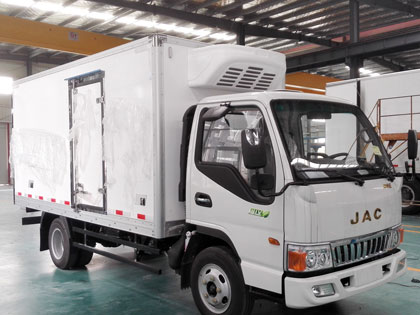

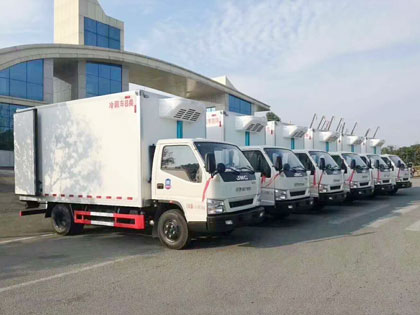

K-460 Truck Refrigeration Unit Application

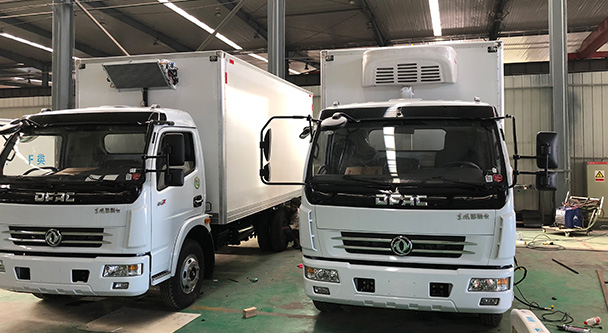

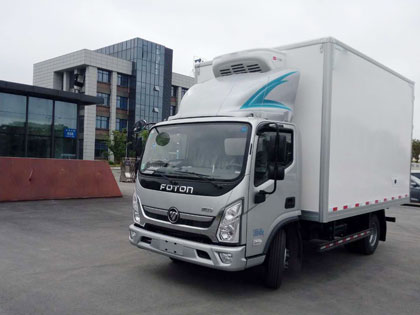

K-460 Truck Refrigeration Unit Application
K-460 Truck Refrigeration Unit Application
