K-560S Backup Power Truck Refrigeration Systems
Integrated Electric Standby Units

K-560S Electric Standby Units

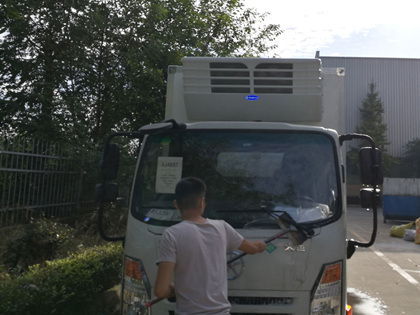

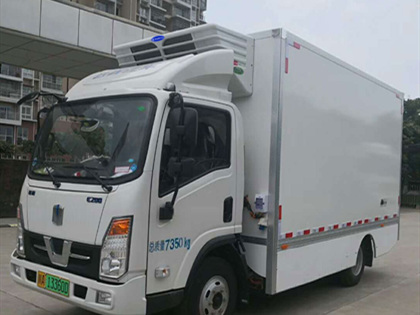

K-560S is integrated backup power operated truck refrigeration solution for 25~30 m³ truck box.
Model : K-560S
Control Voltage : DC 12V/24V
Recommend Box Volume : 25~30m³
Temp. range : -20℃~+30℃
Introduction
Technical Data
Application
INQUIRY
Introduction

Brief Introduction of K-560S  Backup Power Truck Reefer Systems :


Truck Frigo K-560S  is integrated backup power truck refrigeration system units, apply for 25m³to 30m³ truck bodies.

● Easy to install, standby system is in the internal of condenser, so it can decrease the wire installation work.
● Save the installation space, small in size, beautiful appearance.
● After thousands times of testing, it has a reliable working performance.
● Vehicle engine or standby system models for choice.
● Decrease fuel consumption and save transportation cost.

Technical Data

Technical Data of K-560S  Backup Power Truck Reefer Systems :



Models K-560S



Cooling Capacity
Road/Standb
y
Temperatu
re
Watt Btu

On the Road
0℃ 5800 19790
-20℃ 3000 10240
Electric Standby 0℃ 5220 17810
-20℃ 2350 8020
Airflow Volume 2200m³/h
Temp. range -20℃~+30℃
Refrigerant and volume R404A,2.8 kg
Defrost Automatic/Manual hot gas defrost
Control Voltage DC 12V/24V
Compressor Model and Displacement Road QP16/163cc
Electrical
standby
KX-303L/68cc
Condenser(with electrical standby) Dimension 1224*508*278mm
Weight 115kg
Evaporator Dimension 1456*640*505mm
Weight 32kg
Electric Standby Power AC 380V±10%,50Hz,3Phase ; or AC 220V±10%,50Hz,1Phase
Recommend Box Volume 25~30m³
Optional Heating, Remote control functions
