Zero Emission Refrigeration Units

K-400E Zero Emission Truck Refrigeration Units

K-400E is all electric powered truck refrigeration units for small to middle sized light commercial trucks to delivery -20℃ deep frozen cargoes or fresh cargoes.
Model: K-400E
Voltage: DC320V/DC540V
Apply Truck Box Size: 18-23m³
Temperature: -20℃ to 20℃
Discription
Technical Data
Features
INQUIRY
Discription

Brief Introduction of K-400E All Electric Refrigeration Units for Light Trucks


K-400E is all electric powered truck refrigeration units for small to middle sized light commercial trucks to delivery -20℃ deep frozen cargoes or fresh cargoes. The K-400E usually designed for 18-23m³ refrigerated truck box. The voltage of K-400E all electric powered truck refrigeration units is DC320V or DC540V, which directly connect with truck battery for cooling system.

Optional Standby System for Choice

Customers can choose electric standby system if you need to cooling the cargoes all day long and night. The electric grid for standby system is: AC220V/AC110V/AC240V

Technical Data

Technical Data of K-400E All Electric Refrigeration Units For Light Trucks


 Model K-400E

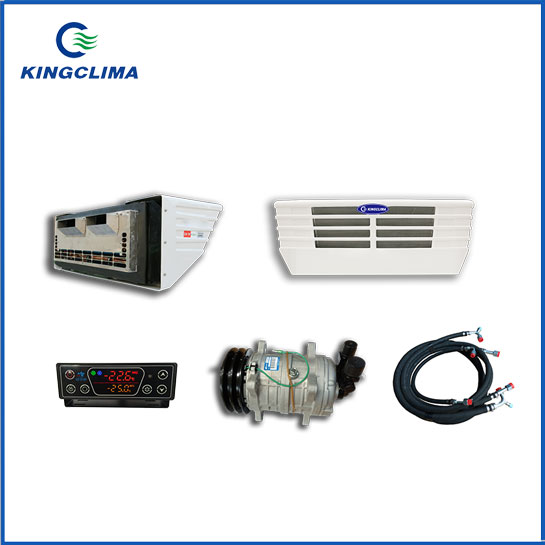

Unit installation mode Evaporator、condenser and compressor are integrated.
Cooling capacity 4650W(0℃)
  2500 W(-18℃)
Volume of container (m3) 18(-18℃)
  23(0℃)
Low Voltage DC12/24V
 Condenser  Parallel flow
Evaporator  copper pipe & Aluminum Foil fin
High Voltage DC320V/DC540V
 Compressor GEV38
Refrigerant R404a
  1.9~2.0Kg
Dimension (mm) Evaporator
  Condenser 1600×809×605
Standby Function (Option,Only For DC320V Unit)

Features

Features of K-300E All Electric Truck Refrigeration Units


★ DC320V、DC720V
★ Quick Installation, simple maintenance and low maintenance cost
★ DC powered driven
★ Green and Environmental Protection.
★ Full digital control, easy to operate
