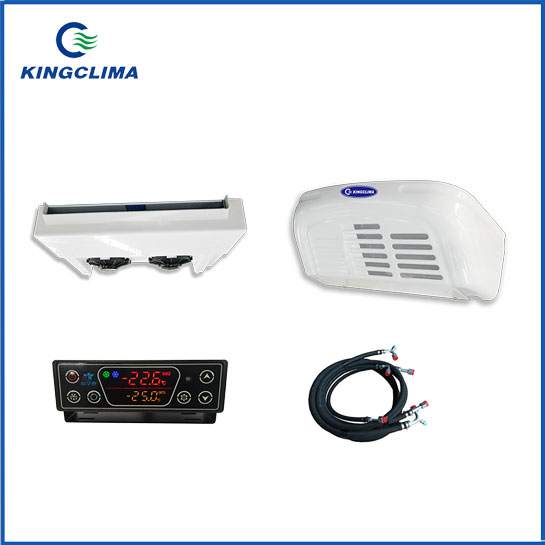

K-300E All Electric Truck Refrigeration Units - KingClima
K-300E All Electric Truck Refrigeration Units - KingClima
Zero Emission Refrigeration Units

K-300E Zero Emission Truck Refrigeration Units

K-300E is designed for zero emission trucks for perishable cargoes delivery with 12-16m³ truck box. The temperature is controlled from -20℃ to 20℃.
Model: K-300E
Voltage: DC320V
Apply Truck Box Size: 12-16m³
Temperature: -20℃ to 20℃
GET QUOTE
Discription
Technical Data
Features
INQUIRY
Discription

Brief Introduction of K-300E All Electric Truck Refrigeration Units


K-300E is designed for zero emission trucks for perishable cargoes delivery with 12-16m³ truck box. The temperature is controlled from -20℃ to 20℃.
The K-300E is high voltage DC320V refrigeration units, the compressor is directly connect with truck battery for cooling system.

Optional Standby System for Choice

Customers can choose electric standby system if you need to cooling the cargoes all day long and night. The electric grid for standby system is: AC220V/AC110V/AC240V

Technical Data

Technical of K-300E Electric Truck Refrigeration Units


 Model K-300E
Unit installation mode
Cooling capacity 3150W（0℃）
  1750W（-18℃）
Volume of container (m3) 12（-18℃）
  16（0℃）
Low Voltage DC12/24V
 Condenser  Parallel flow
Evaporator  copper pipe & Aluminum Foil fin
    Foil fin
High Voltage DC320V
 Compressor GEV38
Refrigerant R404a
  1.3~1.4Kg
Dimension (mm) Evaporator 850×550×175
  Condenser 1360×530×365
Standby Function AC220V 50HZ （Option）
Features

Features of K-300E All Electric Truck Refrigeration Units


★ DC320V、DC720V
★ Quick Installation, simple maintenance and low maintenance cost
★ DC powered driven
★ Green and Environmental Protection.
★ Full digital control, easy to operate
