Introduction :

kingclima is a professional manufacturer of transport refrigeration units in China. B-150C battery van refrigeration units are for -5℃ to 30℃ fresh products delivery in hot summer. They are used for 3-5m³ reefer van.

Brief Introduction of B-150C Battery Van Refrigeration Units

It needs higher requirement on energy-saving, noise control when refrigeration unit in operating, and even higher protection for vehicle generator to ensure the restart all the time to adjust with much complicated city traffic condition.kingclima's fresh and frozen solution for van transport refrigeration unit will meet your needs.

Based on all advantages of engine-driven van reefer unit, we highly recommends battery van refrigeration kits. B-150C for can body box ranges from 3-5m³ . It could effectively conduct refrigeration by vehicle battery when engine off.

Technical Data :

Model		B-150C
Temperature Range In Container		-5℃ ~ +25℃
Cooling Capacity	0℃	1700W
Compressor	Model	DC,12cc/r
Air volume		1100m³/h
Condenser	Coil	Aluminum micro-channel parallel flow coils
	Fan	1 Axial Fan,1100m3/h
	Dimensions &Weight	865x660x210 mm
Evaporator	Coil	Aluminum foil with internal ridge copper tube
	Fan	1 Axial Fans,800m3/h
	Dimensions &Weight	610×550×175mm
Refrigerant		R134a,0.9-1.0KG
Application		2-6m³
Optional Function		Electric standby, Heating

Features :

B-150C Battery Van Refrigeration Features Units :

● Apply for all kinds of small refrigeration vans and electric vehicles
● DC powered driven vehicle battery (12V/24V/48V/72V/96V ETC.),save much fuel.
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● Green and Environment protection ,while the van engine is off ,but cooling system is still working .
● Adopt Eco-friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Rooftop mounted unit and slim evaporator design
● Strong refrigeration,cooling fast with short time
● High-strength plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor , Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc

Application :

How Could You Run B-150C Full Electric Van Refrigeration Units when Van Stops? Once the van engine is off, the frozen unit for cargo van will won't last long for refrigerating. So please equip the small van freezer unit with an extra Transformer(AC Power Switch), which can transform the AC main power to DC12V/DC24V; besides, it can be plugged into the 240V/380V main power supply, and in the mean time charge the vehicle battery. So it’s very simple and convenient to run the van refrigeration units when the engine is off.

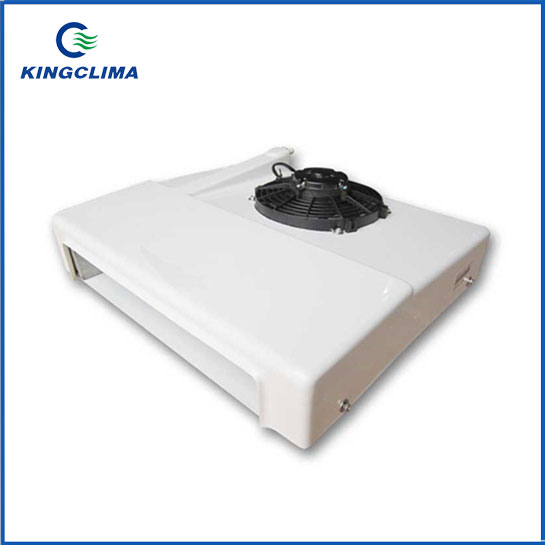

B-150C battery van refrigeration units
