Diesel Engine Units

Super800 Diesel Refrigeration Unit

Kingthermo Super800 is a Self-powered combined diesel engine driven semi-trailer refrigeration unit , it is suitable to transport sensitive cargoes, such as ice cream, frozen or fresh meat, dairy milk,sea food,medical pharmaceutical products and so on. The Super800diesel engine powered truck refrigeration system is applied for 25~35m³ truck bodies.
Model: Super800
Application: 25~40m³ truck box
Cooling Capacity (Road): 7150W at 0℃ / 3960 at -18℃
Cooling Capacity (Standby): 6240W at 0℃/ 3295W at -18℃
Introduction
Technical Data
Features
Application
INQUIRY
Introduction

Brief Introduction of Super800 Diesel Truck Refrigeration Units


Kingthermo Super800 reefer unit diesel engine is a Self-powered combined diesel engine driven semi-trailer refrigeration unit , it is suitable to transport sensitive cargoes, such as ice cream, frozen or fresh meat, dairy milk,sea food,medical pharmaceutical products and so on. The Super800 diesel engine powered truck refrigeration system is applied for 25~35m³ truck bodies.


Technical Data

Super800 Diesel Truck Refrigeration Units Technical Data


Driven Model Diesel Engine Driven  (MONO-BLOCK UNIT)
Model Super-800
TEMP. RANGE -25℃~+30℃
BOX APPLICATION 25~40m³
Cooling capacity Temperature Watt Btu
Ambient temperature Road 0℃ 7150 24400
-18℃ 3960 13500
Standby 0℃ 6240 21300
-18℃ 3295 11240
Airflow Volume 2350m³/h
GENERATOR 12V; 75A
Engine ORIGINAL Japan
BRAND Perkins
FUEL TYPE Diesel
NO. OF CYLINDER 3
TEMP. CONTROL Digital Controller in Cab
DEFROST Hot Gas Defrost
Compressor ORIGINAL Germany
BRAND Bock
MODEL FKX30 235TK
DISPLACEMENT 233cc
REFRIGERANT R404a
CHARGE VOL. 4.5Kg
HEATING Hot Gas Heating; Standard
ELECTRIC STANDBY AC220V/3Phase/50Hz; AC380V/3Phase/50Hz; Standard
OVERALL SIZE 1825*860*630mm
BODY  OPENING 1245*310 (mm)
WEIGHT 432Kg



Features

Super Series Diesel Powered Truck Refrigeration System Features


Our diesel engine truck refrigeration unit have been exported to many countries, such as Peru ,Chile ,Italy ,Spain ,Thailand, Malaysia, Australia, Mexico ,and Middle east area .

● Super series diesel units are multiple temperature refrigeration system for trucks, trailers. The system makes multi temperature zones truck refrigeration come true, which means that Super 1200 reefer unit will provide the ability to deliver both chiller and frozen ones in a single refrigerated truck box, with set points ranging from -20℃ to 30℃.
● All of the diesel powered refrigeration unit for truck have been tested under the 50℃ high ambient temperature and improve its working life.
● The units with CPR valve will better protect compressors, especially in extremely hot or cold place.
● HFC -environment friendly refrigerant: R404a
● The Hot gas defrosting system with Auto and manual is available for your choices
● Front mounted unit and slim evaporator design,driven by Perkins 3 cylinder engine ,low noise
● Strong refrigeration,axial an ,large air volume,cooling fast with short time
● High-strength ABS plastic enclosure,elegant appearance
● Quick installation,simple maintenance an low maintenance cost
● Famous brand compressor:such as Valeo compressor TM16,TM21,QP16,QP21 compressor ,
 Sanden compressor, highly compressor etc.
● International Certification : ISO9001,EU/CE ATP ,etc


Application

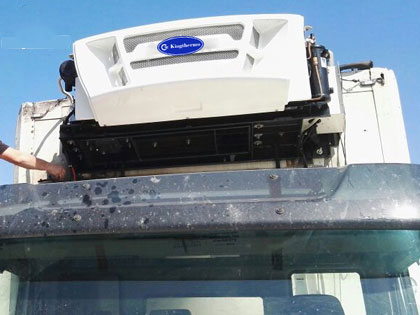

Super800 diesel units of refrigeration for truck is used for 25-40m³truck box. It is commonly for the ISUZU trucks to convert into refrigerated trucks.

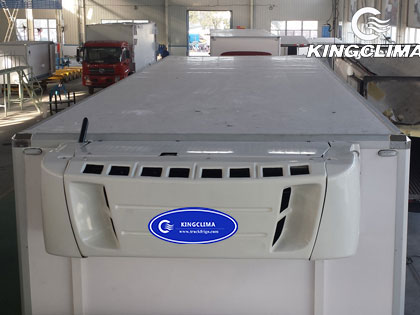

Super800 Diesel Refrigeration Unit

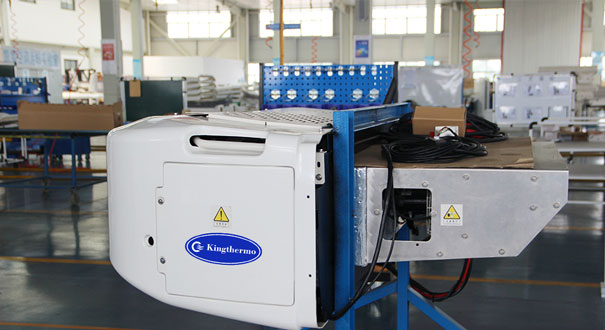

Super800 Diesel Refrigeration Unit

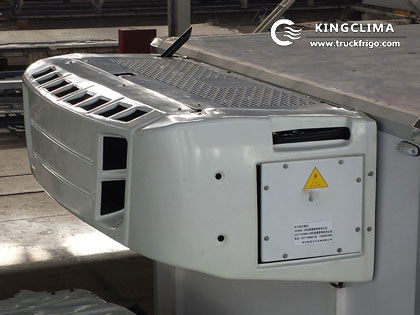

Super800 Diesel Refrigeration Unit
