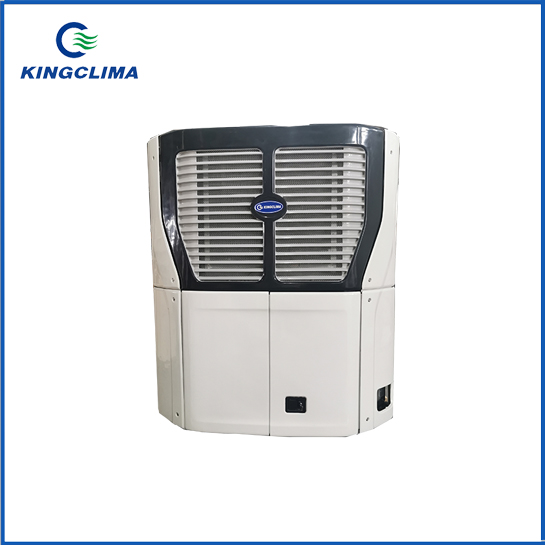

| Product appearance : Condenser 1975*2270*584mm（818k g ） Evaporator1685×1150×204mm H ole size：1696×1168mm | ||||
| Technical Para meter | ||||
| Minimum Temperature r e O f C o n ta i n e r : - 3 0 ℃ Applicab le volume: 80m³ - 100m³ Cooling C capacity: 0℃/19900w -20℃/10900w E vaporation air volume: 5850m³/h (Ambient Temperature: 30℃) Compressor mo del/n umber of cylinders / Refrigerant: R404a, Charge: 7kg Defrosting: Automatic defrosting (hot gas de fr o s t in g ) a n d m a n u a l forced defrosting displacement: 6tfr (y) 6 cylinders 715cm³ Oil Capacity: 12.6L, Maintenance Cyc le: 3000 hours Unit voltage: DC12V Optional: fuel heater, oil level sensor, unit anti-collision protector, remote data recording, remote control function, etc |
||||
| Main configurat ion sheet | ||||
| NO. | Nam e | Model & Place of Origin | Featu res | Quant ity |
1 |
Engine | 404d-22 Perkins/UK Or 4tn V88 Yangma/Japa n |
High power, low energy consumption, stab le performance, long maintenance cycle | 1 S e t |
| 2 | Compress or | BITZER/German y | High efficiency and lon g life | 1 S e t |
3 |
Alternato r | Valeo (France) Or prestolite / (joint ventur e) |
High power generation efficiency and low fa ilure rate | 1 S e t |
| 4 | Condensing fan | KC | ABS fan blade, high efficiency, low noise | 1 S e t |
| 5 | Evaporation fan | KC | A B S c e n t rifugal fan blade, large air volume, lo n g li fe | 1 S e t |

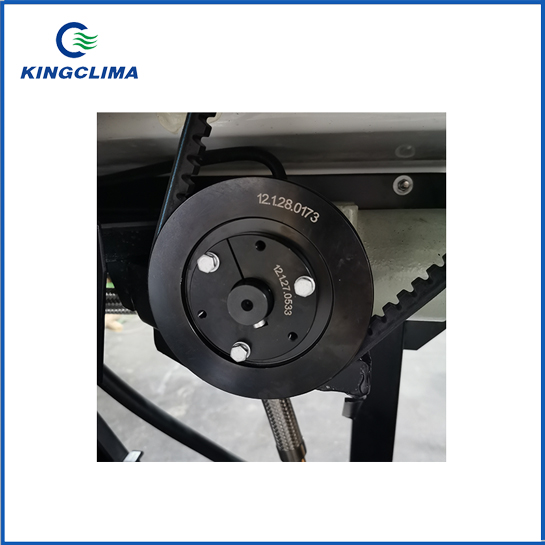

| 6 | Clutch | Lang (joint ventu re) | High stabili ty | 1 Set |

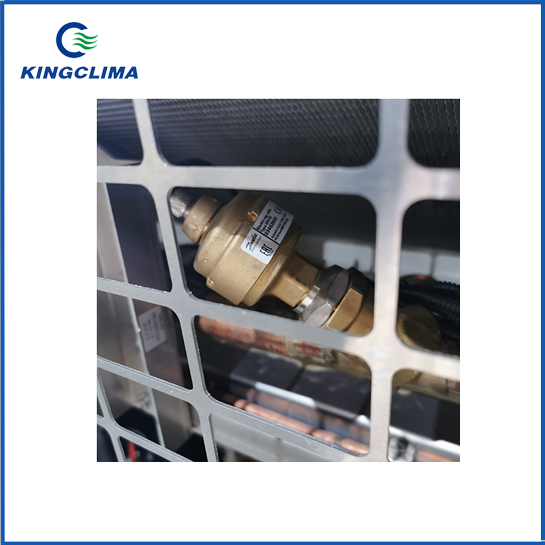

| 7 | EXV | Danfoss (Denmark ) | Wide adjustment range and fast reactio n speed | 1 Set |
| 8 | Electric suction regulating control valve |
Danfoss (Denmark ) | The valve opening can also be accurately controlled unde r low pressure load condition |
1 S e t |
| 9 | Receiver D rier | Danfoss (Denmark) | Strong drying ability and good filtra tion effect | 1 S e t |
| 10 | Reservoi r | KC | Reasonable design, high rus t grade | 1 S e t |
| 11 | Heat Excha nge | SWEP (joint vent ure) | High efficiency and energy saving, sm all heat los | 1 S e t |
| 12 | Check Va lve | Danfoss (Denmark ) | Good effect, reliable performance, effective protection o f compressor |
1 S e t |
| 13 | Solenoid va lve | Sporlan (joint ventu re) | High temperature resistant valve body, high performanc e coil , easy to install |
3 S e t s |
| 14 | Exhaust temperature se nsor | Custom Made | Reliable performance, comprehensive protection o f compressor | 1 S e t |
| 15 | Connect or | AM P | Good contact, wate rproof | 42 S e t s |
| 16 | Condens er | Custom Ma de | All aluminum parallel flow core for high efficiency heat transfer | 1 S e t |
| 17 | Evaporat or | Custom Ma de | Internal thread copper tube, high efficiency heat sink, good condensate flow performance |
1 S e t |
| 18 | Control B ox | Custom Ma de | Integrated circuit control, artificial intelligence, easy to op erate | 1 S e t |
| 19 | Shell | FRP | Beautiful, high strength, corrosion resistance, a nti-aging | 1 S e t |
| 20 | Sheet Meta l Parts | Custom Ma de | National standard steel, surfac e spray | 1 S e t |
| 21 | Belt | Gates (joint ventu re) | Wear resistant, long life | 3 R o o t s |
| 22 | Fuel tank (option al) | Custom Ma de | High strength, light weight, large c apacity | 1 S e t |
| 23 | Battery | VARTA (joint ventu re) | Low temperature start, stable output, long service life | 1 S e t |
